GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A11+
Part#:RAM-GDS-U4-SAM88-1-KIT1 UPC:793442033919
Ball Icon C SIZE
Arm Icon MED ARM
5 359 kr
Incl. VAT

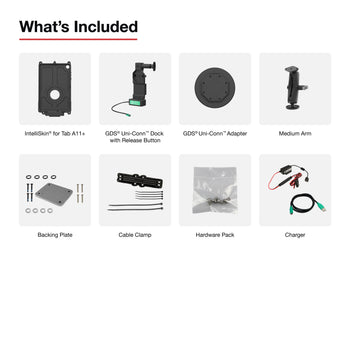

  • Bundle includes the GDS® Uni-Conn™ dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® Next Gen for Samsung Tab A11+, C size double ball mount with medium arm, backing plate adapter, 10-30V hardwire charger with USB-A connector, USB-A male to USB-C male 2.0 entension cable, and cable clamp
  • Dock features GDS® Technology™ for charging capabilities via pogo pin connectors uses USB-C female cable to connect to power
  • Uni-Conn™ dock features a quick-release button for easy device insertion and removal
  • Backed by a 3-year warranty

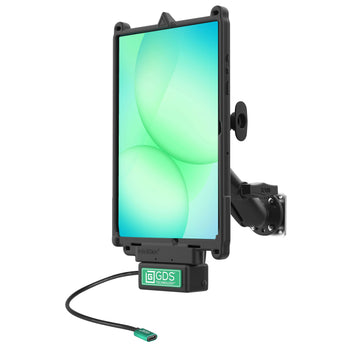

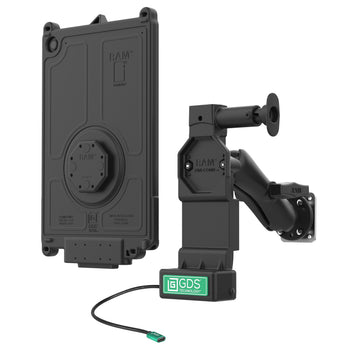

The GDS® Uni-Conn™ Vehicle Bundle with Release Button for Samsung Tab A11+ (RAM-GDS-U4-SAM88-1-KIT1) is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A11+, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamps
(1) USB Cable
(1) Vehicle Hardwire Charger
socket to socket length

4.66"
ball size

C Size (1.5")
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC*
output current

2.5A max
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

0.0 kg

Consists of

IntelliSkin® Next Gen for Samsung Tab A11+ RAM-GDS-SKIN-SAM88-NG-1
1 429 kr
GDS® Uni-Conn™ Adapter for IntelliSkin® RAM-GDS-U1U
219 kr
GDS® Uni-Conn™ Dock with Release Button RAM-GDS-DOCK-U4CPU
1 239 kr
RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium RAM-138-225B2U
Ball Icon C SIZE
Arm Icon MED ARM
1 229 kr
GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger RAM-GDS-CHARGE-V21CU
1 039 kr

Galaxy Tab A11+
