GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro
Part#:RAM-GDS-V11-SAM84-225B2-V7C UPC:793442035975
Ball size B
Arm length Medium
3 959 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Screen Protector for XCover7 Pro & 6 Pro - 10-Pack
Recommended add-on
RAM® Screen Protector for XCover7 Pro & 6 Pro - 10-Pack
979 kr
Details
  • All-in-one vehicle mounting kit designed specifically for the Samsung XCover7 Pro & 6 Pro

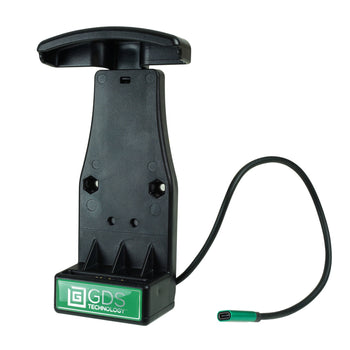

  • Bundle includes an IntelliSkin® for Samsung Galaxy XCover7 Pro & 6 Pro, a GDS® Handheld Dock with USB Type-C 2.0, a medium double ball mount with backing plate, cable clamp, and hardwire charger
  • Integrated GDS® connector and docking contacts provide charging and data sync capabilities across the GDS® Ecosystem™ platform
  • Dock is spring-loaded and specifically designed to accommodate IntelliSkin®-wrapped handheld devices

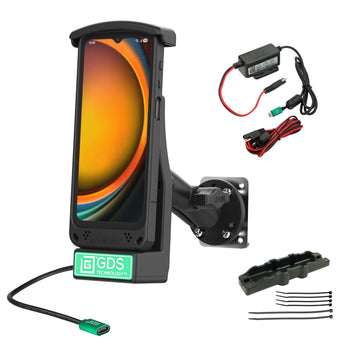

The GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro (RAM-GDS-V11-SAM84-225B2-V7C) is an all-in-one mounting kit that includes everything you need to mount your XCover7 Pro in a vehicle. This kit contains one IntelliSkin® for Samsung Galaxy XCover7 Pro & 6 Pro, a GDS® Handheld Dock with USB Type-C 2.0, a medium double ball mount with backing plate, cable clamp, and hardwire charger. Featuring GDS® Technology™ with military-grade drop protection, IntelliSkin® sleeves contain an integrated GDS® connector molded directly into the skin, preventing damage to your device’s charging port from repetitive docking. The GDS® connector enables the XCover6 Pro's charging capabilities, as well as access to data sync across the GDS® Ecosystem™. Always Protected. Always Connected.®

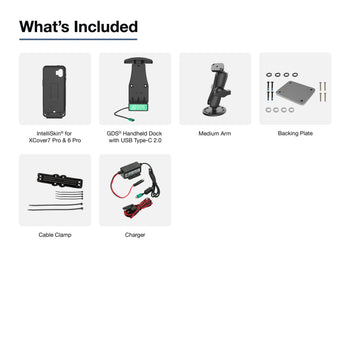

hardware included

Assembly Hardware
Hardwire Charger with USB-C Connector
Cable Clamp Kit
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

B Size (1")
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5.42-9VDC
output current

2.5A max
input connector

Bare Wire
input cable length

2.5 Meters
output connector

USB Type-C Male
output cable length

1 Meter
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
