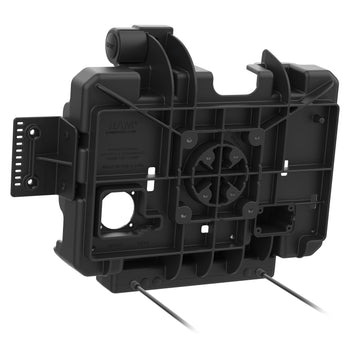

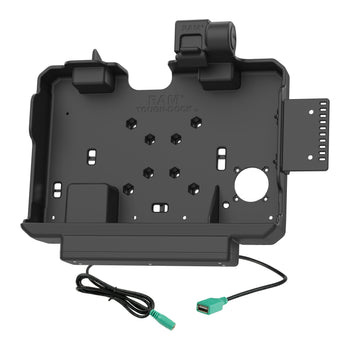

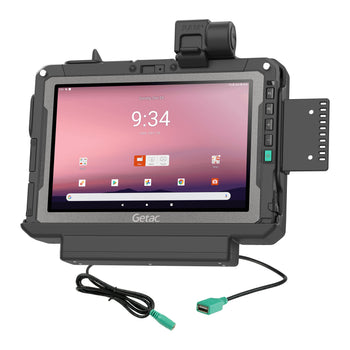

RAM® Power + Data Dock for Getac ZX10
Part#:RAM-HOL-GE4PDU UPC:793442016622
4 799 kr
  • Form-fit power + data sync dock designed specifically for Getac ZX10 rugged tablet

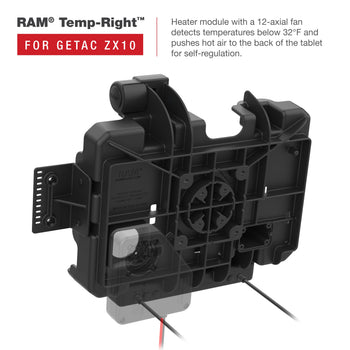

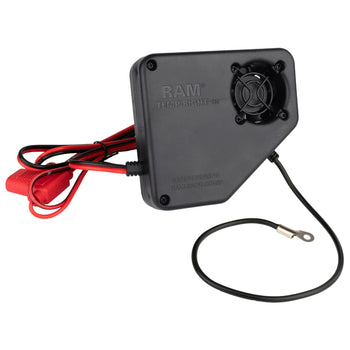

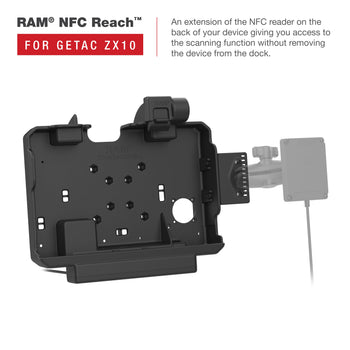

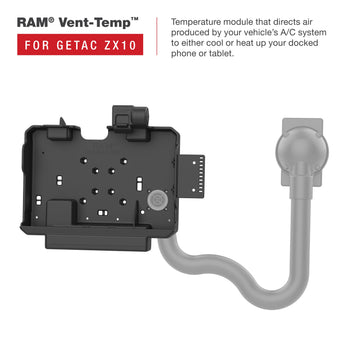

  • Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
  • Power delivered through integrated pogo pin technology via 5.5mm DC Connector connect a single input device via USB-A connector
  • Includes 2-hole side bracket for mounting additional devices such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
The RAM® Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDU) allows you to secure the device and keep it charged through the pogo pin contacts while docked—power is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM® Temp-Right™, Vent-Temp™, RAM® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the Hard Carry Handle. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM® 2-hole diamond bases for additional device mounting such as a phone or other handheld device.
hardware included

(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-32 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
()1 Cable Clamp
(2) Large Cable Ties
(8) Small Cable Ties
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
output voltage

19VDC
input connector

5.5mm DC Connector
input cable length

1 Meter
output connector

(1) USB 2.0 Type A
output cable length

240mm
peripheral output

500mAh
certifications

FCC, IC, CE, UKCA, WEEE, RoHS
Weight

0.975 kg
Additional Information
This dock will not support the Getac hand strap accessory.

ZX10
