RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
B SIZE
ARM
5 679 kr
Incl. VAT

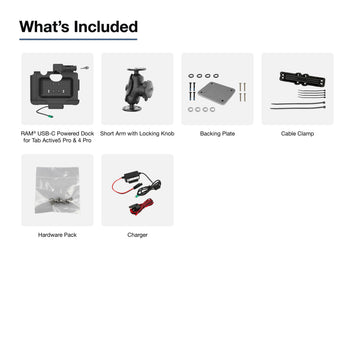

- Bundle includes the RAM® USB-C Powered Dock for Tab Active5 Pro & 4 Pro, short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger
- Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™ powered through integrated pogo pin connector
- Next gen charging with integrated pogo pin docking contacts that match the Tab Active5 Pro's pogo pads for a fumble-free charging experience and port-protection
- Backed by a 3-year warranty

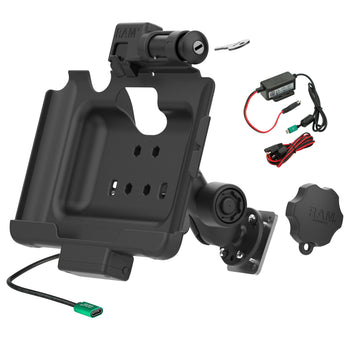

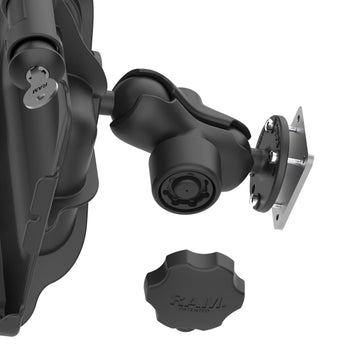

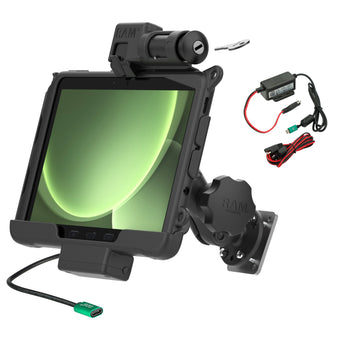

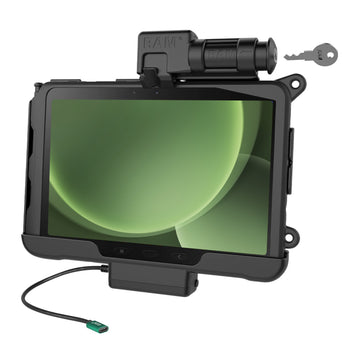

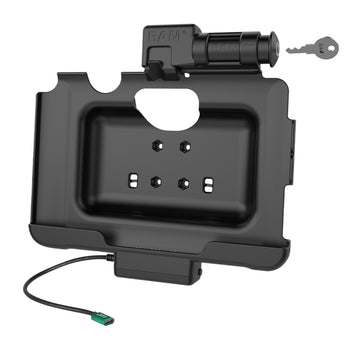

The RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro (RAM-HOL-SAM57CPKL-225-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active Pro series in your fleet. It contains one locking RAM® USB-C Powered Dock for Tab Active5 Pro/4 Pro, a short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. The RAM® Powered Dock is backed by a 3-year warranty.
| hardware included |
2 Keys |
| socket to socket length |
2.5" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| input voltage |
10-30VDC |
| output voltage |
5.42-9VDC |
| output current |
2.5A max |
| input connector |
Bare Wire |
| input cable length |
2.5 Meters |
| output connector |
USB Type-C Male |
| output cable length |
1 Meter |
| operating temperature |
-10°C to +70°C |
| storage temperature |
-40°C to +70°C |
| regulatory |
Over Voltage Protection |
| certifications |
CE Certification |
| Warranty |
3 year warranty |
| Weight |
0.0 kg |
Consists of
RAM® Locking Drill-Down Dashboard Mount with Backing Plate C Size Short
RAM-101L-B-225B2U
C SIZE
SHORT ARM
1 339 kr
C SIZE
SHORT ARM
Galaxy Tab Active5 Pro
Galaxy Tab Active4 Pro
Galaxy Tab Active Pro
