RAM® Locking Modular USB-C Dock + Dual USB-A for Samsung Tab Active5 & 3
Part#:RAM-HOL-SAM58CPKLN-2AU UPC:793442022005
3 469 kr
Incl. VAT
RAM® Skin™ for Samsung Tab Active5
Recommended add-on
RAM® Skin™ for Samsung Tab Active5
439 kr
Details
RAM® Screen Protector for Samsung Tab Active5 & 3
Recommended add-on
RAM® Screen Protector for Samsung Tab Active5 & 3
339 kr
Details
  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 and Tab Active 3 provides charging through an integrated pogo pin connection and USB-C cable

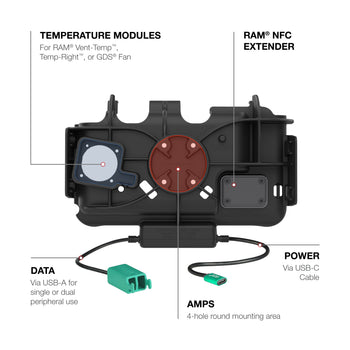

  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Power delivered via USB-C connector connect up to 2 input devices via dual USB-A connector
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty
The RAM® Locking Modular Power + Dual USB Dock for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-2AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB-C female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties.

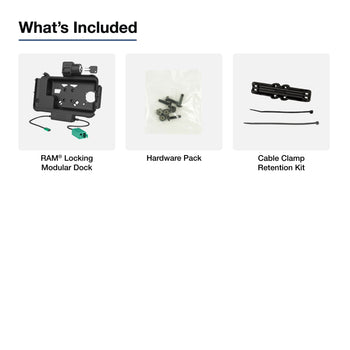

hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(2) Large Cable Ties
(8) Small Cable Ties
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

250mm
output connector

(2) USB 1.1 Type A
output cable length

250mm
peripheral output

500mA
transfer speed

12Mbps
Warranty

3 year warranty
Weight

0.592 kg
Additional Information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function.

This dock is not compatible with the GDS® Hand-Stand™.

Tab Active3

Tab Active5
