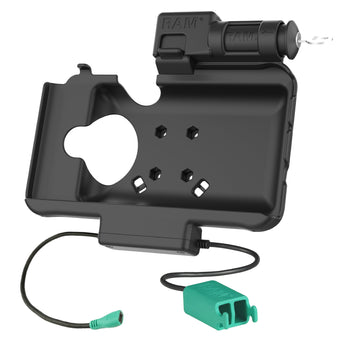

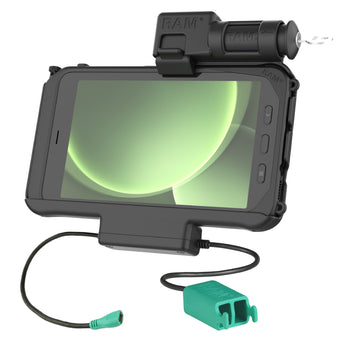

RAM® Key Locking Power + Dual USB Dock for Samsung Tab Active5 & 3
RAM® Key Locking Power + Dual USB Dock for Samsung Tab Active5 & 3
3 319 kr
Incl. VAT
- Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector

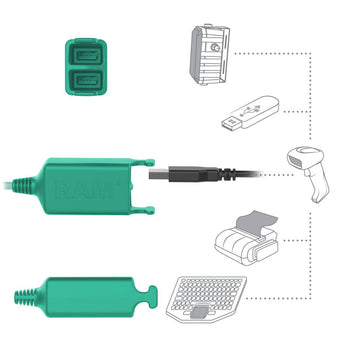

- Power delivered via mUSB connector connect up to 2 input devices via dual USB-A connector
- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
Related RAM® Components
This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a key lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.
| hardware included |
Assembly Hardware |
| product dimensions |
Width: 9.25" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| materials |
High strength composite |
| packaging type |
Poly Bag |
| input voltage |
4.4-5.4VDC (USB power source dependent) |
| output voltage |
4.4VDC-5.4VDC (USB power source dependent) |
| power output |
500mA per USB port |
| input connector |
mUSB 2.0 Female |
| input cable length |
214mm |
| output connector |
(2) USB 1.1 Type A |
| output cable length |
217mm |
| peripheral output |
900mA (per port) |
| transfer speed |
12Mbps |
| Warranty |
3 year warranty |
| Weight |
0.572 kg |
| Additional Information |
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
|
Tab Active5
Tab Active3
Tab Active2
