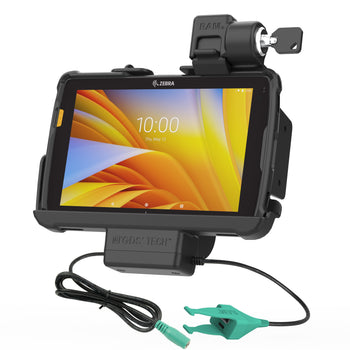

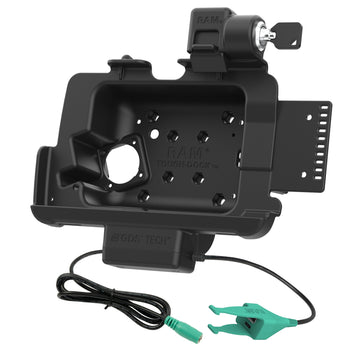

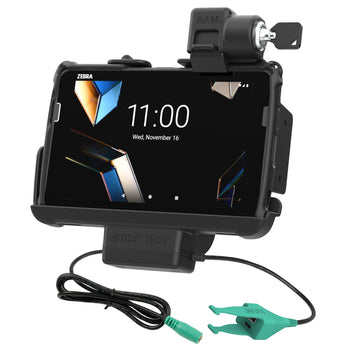

Locking RAM® Tough-Dock™ Power + USB-C & USB-A for Zebra ET4x 8" Tablet
Locking RAM® Tough-Dock™ Power + USB-C & USB-A for Zebra ET4x 8" Tablet
4 119 kr
- Locking RAM® Tough-Dock™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame via DC 5.5mm power jack, USB Type A, and USB Type-C connector for adding up to two peripherals MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Featuring data and charging capabilities and a key lock for theft deterrence, the RAM® Tough-Dock™ for Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A and USB Type-C cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
hardware included |
(2) Keys |
hole pattern |
75 x 75mm VESA |
materials |
High strength composite |
packaging type |
Poly Bag |
input connector |
5.5mm DC Connector |
input cable length |
1 Meter |
output connector |
USB 2.0 Type A |
output cable length |
190mm |
peripheral output |
900mAh (per port) |
transfer speed |
12Mbps |
certifications |
RoHS |
Warranty |
3 year warranty |
Weight |
0.735 kg |
Additional Information |
To support the tablet without the Rugged Frame, see RAP-INSERT-ZE20LU.
|
ET40 8" Tablet with Rugged Frame
ET45 8" Tablet with Rugged Frame
