RAM® Tough-Dock™ with Latch for Zebra ET4x 8"

Part#:RAM-HOL-ZE20PNLLU UPC:793442015618 Patent Pending

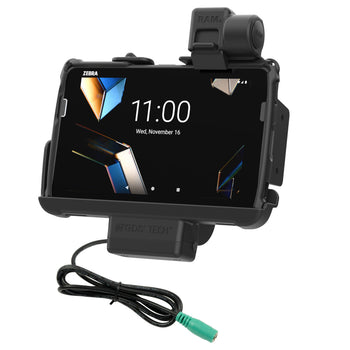

RAM-HOL-ZE20PNLLU:RAM-HOL-ZE20PNLLU_1:RAM Tough-Dock™ with Latch for Zebra ET401 & ET4x 8"

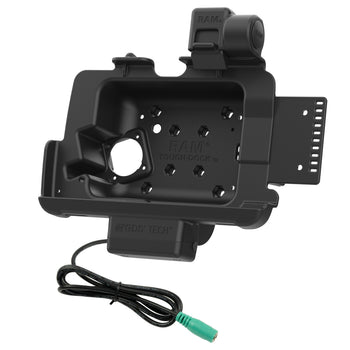

RAM-HOL-ZE20PNLLU:RAM-HOL-ZE20PNLLU_2:RAM Tough-Dock™ with Latch for Zebra ET401 & ET4x 8"

RAM-HOL-ZE20PNLLU:RAM-HOL-ZE20PNLLU_3:RAM Tough-Dock™ with Latch for Zebra ET401 & ET4x 8"

RAM-HOL-ZE20PNLLU:RAM-HOL-ZE20PNLLU_4:RAM Tough-Dock™ with Latch for Zebra ET401 & ET4x 8"

RAM-HOL-ZE20PNLLU:RAM-HOL-ZE20PNLLU_5:RAM Tough-Dock™ with Latch for Zebra ET401 & ET4x 8"

RAM-HOL-ZE20PNLLU:RAM-HOL-ZE20PNLLU_6:RAM Tough-Dock™ with Latch for Zebra ET401 & ET4x 8"

RAM® Tough-Dock™ with Latch for Zebra ET4x 8"

Part#:RAM-HOL-ZE20PNLLU UPC:793442015618 Patent Pending

2 919 kr

Incl. VAT

Options

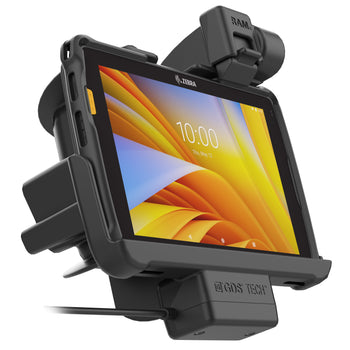

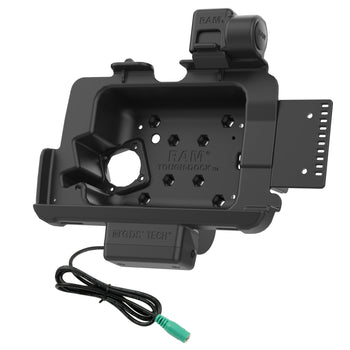

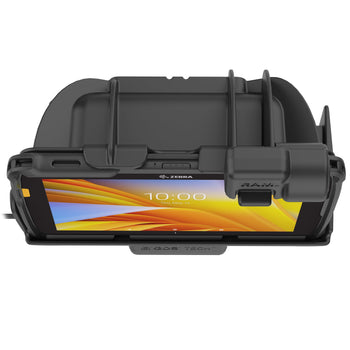

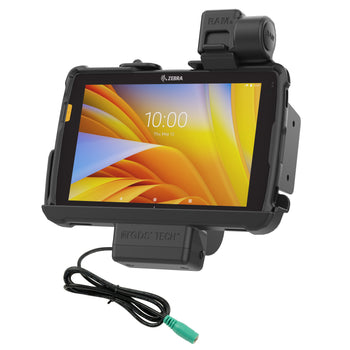

Form-fit dock designed specifically for the Zebra ET401 with RAM® Skin™, and ET40 & ET45 8" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

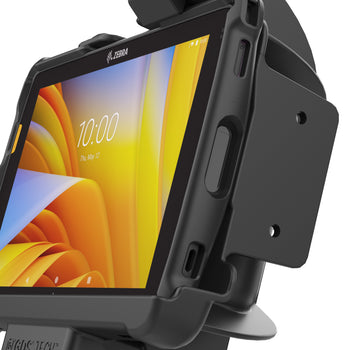

Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
Backed by a 3-year warranty

Related RAM® Components

GDS® Roto-Mag™ 3-in-1 Grip Handle Acces...

RAM® Temp-Right™ Dock Heating Module fo...

RAM® Vent-Temp™ with Back Dock Connecti...

RAM® Vent-Temp™ with Front Dock Connect...

Information

Information
Compatibility
Complete Your Solution
Resources

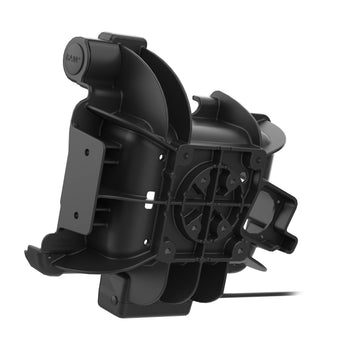

For frequent docking and undocking, this dock works with the Zebra ET401 with RAM® Skin™ or ET40 & ET45 8" with Rugged Frame. This RAM® Tough-Dock™(RAM-HOL-ZE20PNLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

hardware included	(1) Side bracket for accessory mounting (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input connector	5.5mm DC Connector
input cable length	1 Meter
certifications	RoHS WEEE CE UKCA
Warranty	3 year warranty
Weight	0.658 kg
Additional Information	To support the tablet without the Rugged Frame, see RAP-INSERT-ZE20LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKL-ZE20PD2U.

hardware included	(1) Side bracket for accessory mounting (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input connector	5.5mm DC Connector
input cable length	1 Meter
certifications	RoHS WEEE CE UKCA
Warranty	3 year warranty
Weight	0.658 kg
Additional Information	To support the tablet without the Rugged Frame, see RAP-INSERT-ZE20LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKL-ZE20PD2U.
