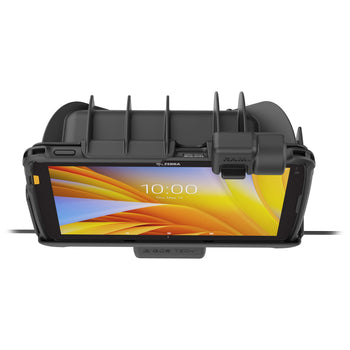

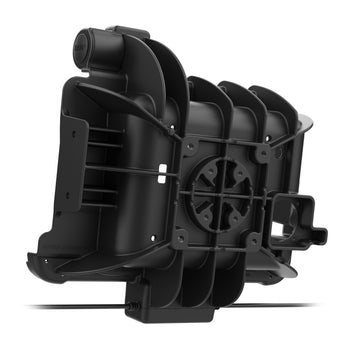

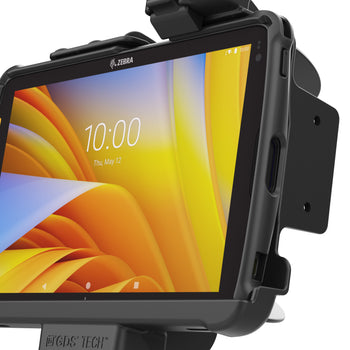

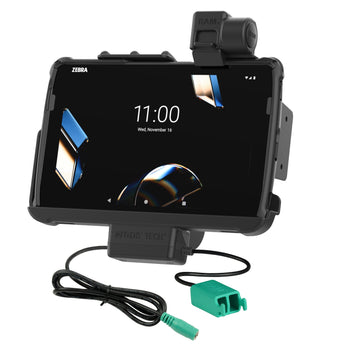

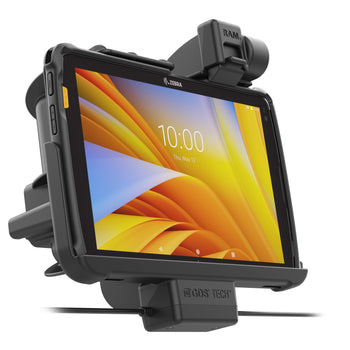

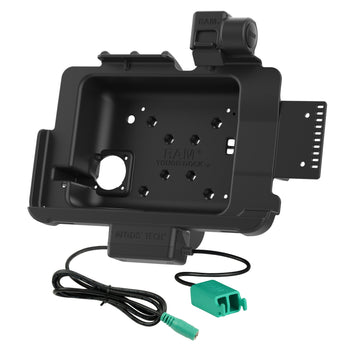

RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10" Tablet
Part#:RAM-HOL-ZE21PD2NLLU UPC:793442017131
3 679 kr
  • Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
  • Backed by a 3-year warranty
The RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input connector

5.5mm DC Connector

input cable length

1 Meter

output connector

(2) USB 2.0 Type A

output cable length

250mm

peripheral output

900mAh (per port)

transfer speed

12Mbps

certifications

RoHS
WEEE
FCC
CE
ICES
UKCA

Warranty

3 year warranty

Weight

0.753 kg

Additional Information
To support the tablet without the Rugged Frame, see RAP-INSERT-ZE21LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKNLL-ZE21PD2U.

ET40 10" Tablet with Rugged Frame

ET45 10" Tablet with Rugged Frame
