RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10"

Part#:RAM-HOL-ZE21PDNLLU UPC:793442017148

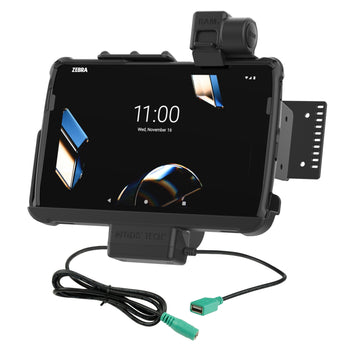

RAM-HOL-ZE21PDNLLU:RAM-HOL-ZE21PDNLLU_1:RAM Tough-Dock™ Power + Data with Latch for Zebra ET401 & ET4x 10"

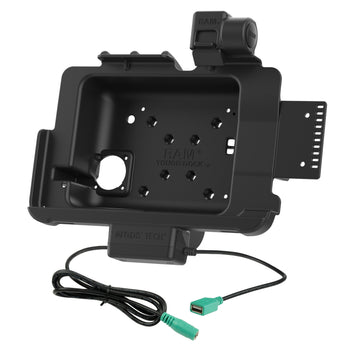

RAM-HOL-ZE21PDNLLU:RAM-HOL-ZE21PDNLLU_2:RAM Tough-Dock™ Power + Data with Latch for Zebra ET401 & ET4x 10"

RAM-HOL-ZE21PDNLLU:RAM-HOL-ZE21PDNLLU_3:RAM Tough-Dock™ Power + Data with Latch for Zebra ET401 & ET4x 10"

RAM-HOL-ZE21PDNLLU:RAM-HOL-ZE21PDNLLU_4:RAM Tough-Dock™ Power + Data with Latch for Zebra ET401 & ET4x 10"

RAM-HOL-ZE21PDNLLU:RAM-HOL-ZE21PDNLLU_5:RAM Tough-Dock™ Power + Data with Latch for Zebra ET401 & ET4x 10"

RAM-HOL-ZE21PDNLLU:RAM-HOL-ZE21PDNLLU_6:RAM Tough-Dock™ Power + Data with Latch for Zebra ET401 & ET4x 10"

RAM® Tough-Dock™ Power + Data with Latch for Zebra ET4x 10"

Part#:RAM-HOL-ZE21PDNLLU UPC:793442017148

3 359 kr

Incl. VAT

Options

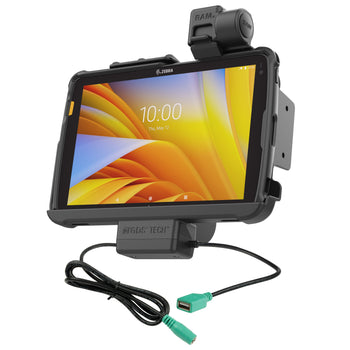

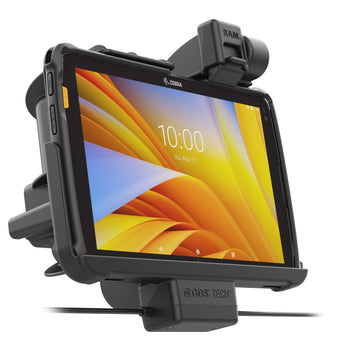

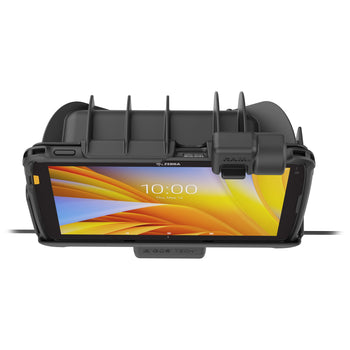

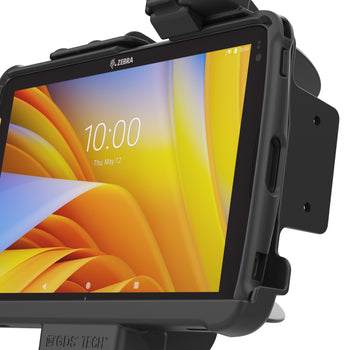

Form-fit + single USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a USB Type A connector for adding a peripheral

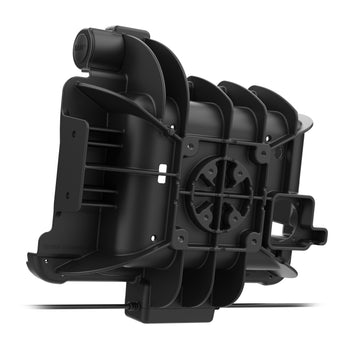

Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

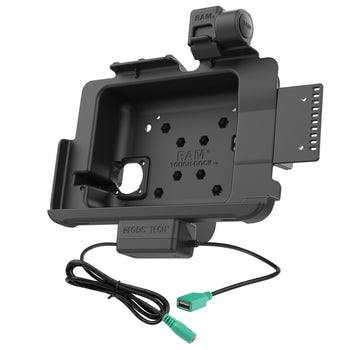

Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
Backed by a 3-year warranty

Related RAM® Components

GDS® Hand-Stand™ for Zebra ET401 & ET4x...

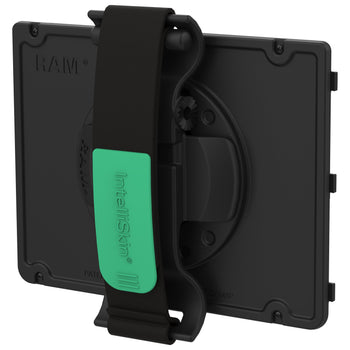

GDS® Hand Strap Accessory for Zebra ET4...

GDS® Hand-Stand™ Magnetic Accessory for...

GDS® Roto-Mag™ 3-in-1 Grip Handle Acces...

RAM® Temp-Right™ Dock Heating Module fo...

RAM® Vent-Temp™ with Back Dock Connecti...

Information

Information
Compatibility
Complete Your Solution
Resources

The RAM® Tough-Dock™ Power + Data with Latch works with the Zebra ET40 & ET45 10" with Rugged Frame. This dock (RAM-HOL-ZE21PDNLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

hardware included	(1) Side bracket for accessory mounting (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input connector	5.5mm DC Connector
input cable length	1 Meter
output connector	USB 2.0 Type A
output cable length	242mm
peripheral output	500mA
transfer speed	12Mbps
certifications	RoHS WEEE CE UKCA
Warranty	3 year warranty
Weight	0.733 kg
Additional Information	To support the tablet without the Rugged Frame, see RAP-INSERT-ZE21LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKNLL-ZE21PDU.
