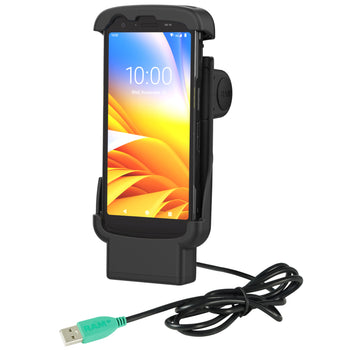

RAM® Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot
Part#:RAM-HOL-ZE24P-1U UPC:793442016714
2 079 kr
  • Spring-loaded form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer without Rugged Boot provides power through 1.25-meter long USB Type-A connector

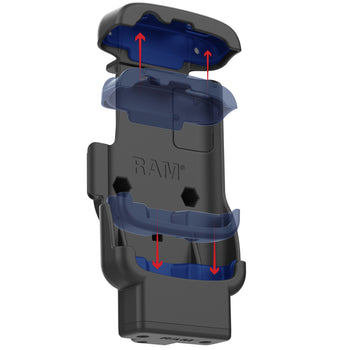

  • Includes top and bottom shim inserts for a form-fit docking experience when using the TC22/TC27 without the Rugged Boot
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

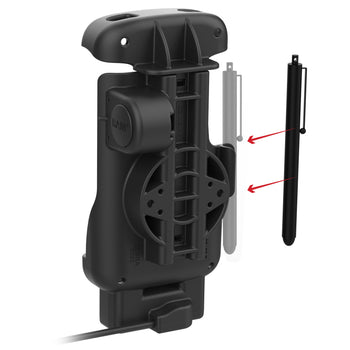

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24P-1U) allows you to secure the Zebra TC22 and the TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions

Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

USB Type A
input cable length

1.25 Meters
certifications

RoHS
WEEE
CE
UKCA
Warranty

3 year warranty
Weight

0.289 kg

TC22 & TC27 without Rugged Boot
