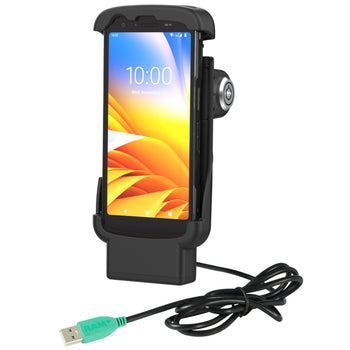

RAM® Locking Powered Dock for Zebra TC201 & TC22/TC27 without Boot
Part#:RAM-HOL-ZE24PL-1U UPC:793442016691
2 859 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

GDS® Type-C and Type A 2-Port Cigarette Charger
Recommended add-on
GDS® Type-C and Type A 2-Port Cigarette Charger
799 kr
Details
  • Spring-loaded key-locking form-fit powered dock perfectly secures the Zebra TC201 and TC22/TC27 handheld computer without Rugged Boot provides power through 1.25-meter long USB Type-A connector

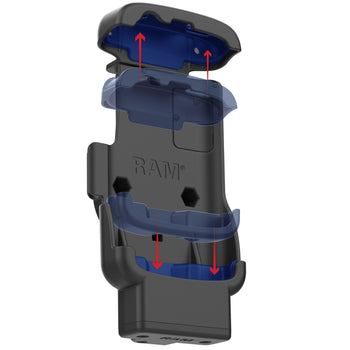

  • Includes top and bottom shim inserts for a form-fit docking experience when using the TC201 or TC22/TC27 without the Rugged Boot
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Double Socket Arm with Diamond Ball Plate
RAM® Double Socket Arm with Diamond Bal...
RAM® Double Socket Arm with Diamond Ball Plate - C Size Short
RAM® Double Socket Arm with Diamond Bal...
RAM® Double Socket Arm with Diamond Ball Plate - Long Arm
RAM® Double Socket Arm with Diamond Bal...
GDS® 2-Port USB Cigarette Charger with Qualcomm® Quick Charge™
GDS® 2-Port USB Cigarette Charger with ...
GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector
GDS® Modular 10-30V Hardwire Charger wi...
GDS® 2-Port USB Wall Charger
GDS® 2-Port USB Wall Charger

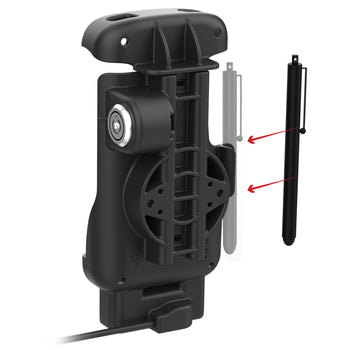

This key-locking, spring-loaded, form-fit powered dock (RAM-HOL-ZE24PL-1U) allows you to secure the Zebra TC201 or TC22/TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nyloc Nuts
product dimensions

Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

USB Type A
input cable length

1.25 Meters
certifications

RoHS
WEEE
CE
UKCA
Warranty

3 year warranty
Weight

0.366 kg
