RAM® Form-Fit Powered Dock for Zebra TC201 & TC22/TC27 with Boot
Part#:RAM-HOL-ZE24PU UPC:793442016677
Availability Only a few left
1 999 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
  • Spring-loaded form-fit powered dock perfectly secures the Zebra TC201 and TC22/TC27 handheld computer with Rugged Boot provides power through 1.25-meter long USB Type-A connector
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

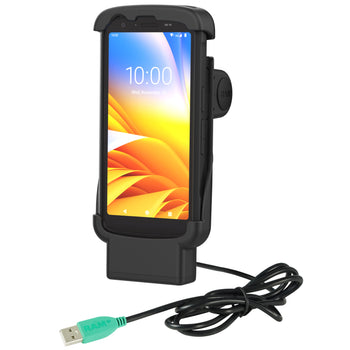

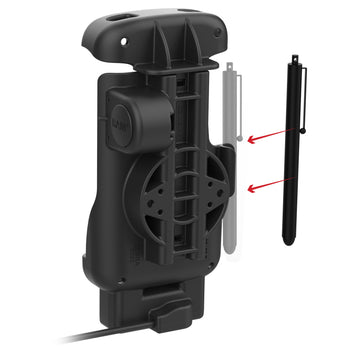

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24PU) allows you to secure the Zebra TC201 or TC22/TC27 handheld computer with the Rugged Boot installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap as well as the extended battery pack. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nyloc Nuts

product dimensions

Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

input connector

USB Type A

input cable length

1.25 Meters

certifications

RoHS
WEEE
CE
UKCA

Warranty

3 year warranty

Weight

0.264 kg
