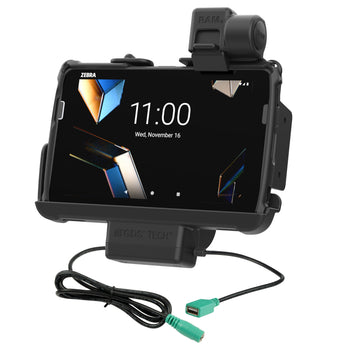

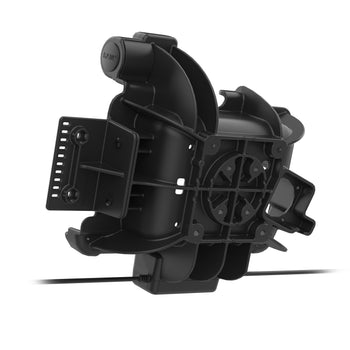

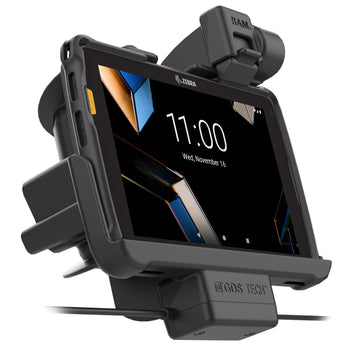

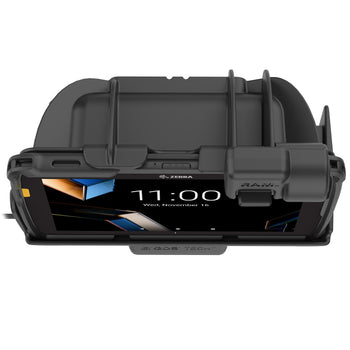

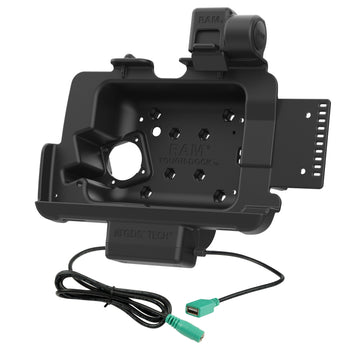

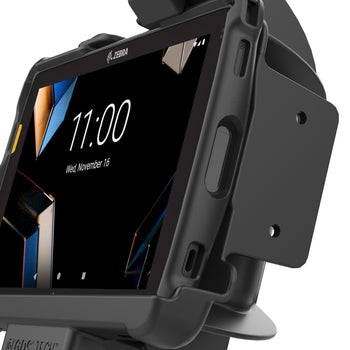

RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8"
Part#:RAM-HOL-ZE44PDU UPC:793442032813
3 439 kr
Incl. VAT
  • Form-fit + single USB Type-A dock designed specifically for the Zebra ET401 with RAM® Skin™, including a top latch design for frequent docking and undocking of the tablet
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a USB Type A connector for adding a peripheral
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
  • Backed by a 3-year warranty
For frequent docking and undocking, this dock works with the Zebra ET401 with RAM® Skin™. This RAM® Tough-Dock™ (RAM-HOL-ZE44PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input connector

5.5mm DC Connector
input cable length

1 Meter
output connector

USB 2.0 Type A
output cable length

242mm
peripheral output

500mA
transfer speed

12Mbps
certifications

RoHS
WEEE
CE
UKCA
Warranty

3 year warranty
Weight

0.0 kg

ET401 8" with Rugged Frame or RAM® Skin™

ET40 8" with Rugged Frame

ET45 8" with Rugged Frame
