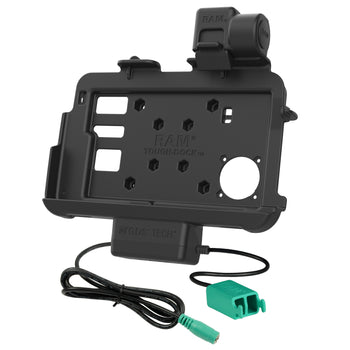

RAM® Thin-Dock™ + Dual USB for Zebra ET401 & ET4x 8"
Part#:RAM-HOL-ZE46PD2U UPC:793442032417
4 359 kr
Incl. VAT
  • Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45
  • Slim-profile design at 2.44" depth with metal reinforcement plate

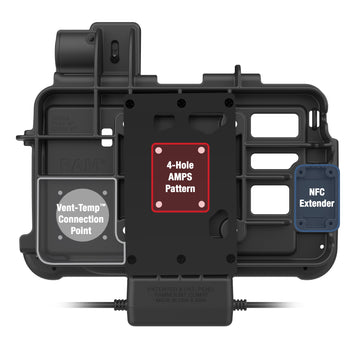

  • Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Compatible with RAM® Vent-Temp™ and NFC Extender
  • Backed by a 3-year warranty

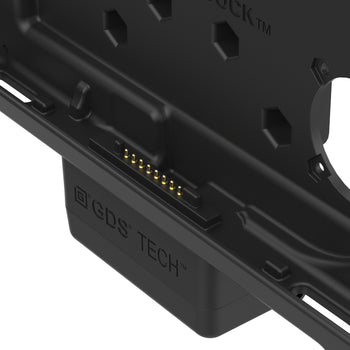

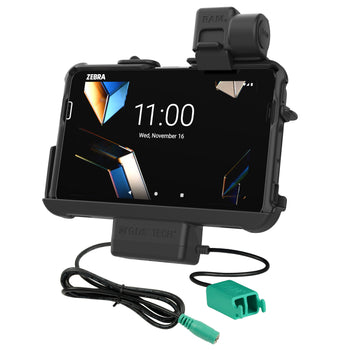

The RAM® Thin-Dock™ + Dual USB for Zebra ET401 & ET4x 8" (RAM-HOL-ZE46PD2U) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. Connect up to two peripheral devices such as a mouse, keyboard, or printer using the peripheral dual USB-A connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support OEM accessories like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM® 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories.
hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

12V @ 2A

power output

24W

input connector

5.5mm DC Connector

input cable length

1 Meter

output connector

(2) USB 2.0 Type A

output cable length

225mm

peripheral output

900mA (per port)

transfer speed

12Mbps

certifications

RoHS
WEEE
CE
FCC
IC
RCM

Warranty

3 year warranty

Weight

0.0 kg

ET401 8"

ET40 8"

ET45 8"
