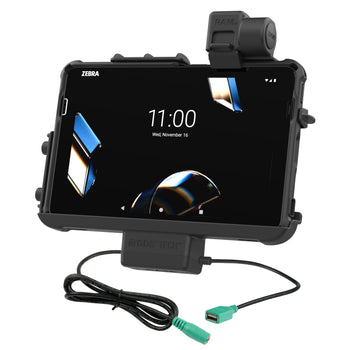

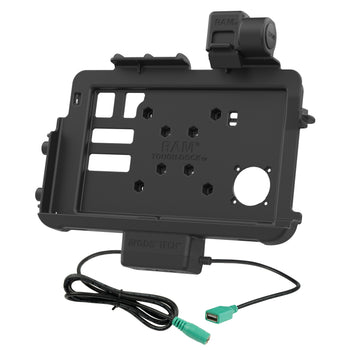

RAM® Thin-Dock™ + Data Dock for Zebra ET401 & ET4x 10"
Part#:RAM-HOL-ZE47PDU UPC:793442032493
3 769 kr
Incl. VAT
  • Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45
  • Slim-profile design at 2.45" depth with metal reinforcement plate

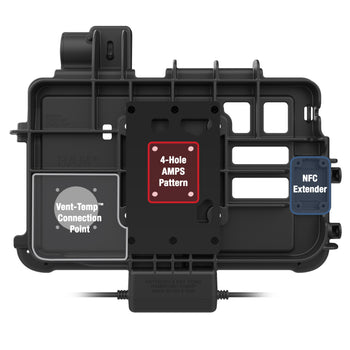

  • Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Compatible with RAM® Vent-Temp™ and NFC Extender
  • Backed by a 3-year warranty

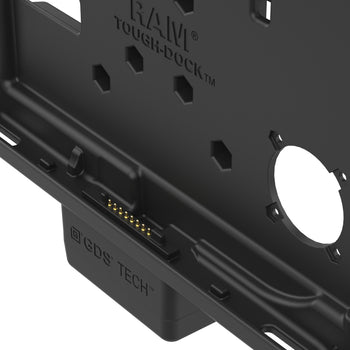

The RAM® Thin-Dock™ + Data Dock for Zebra ET401 & ET4x 10" (RAM-HOL-ZE47PDU) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. Connect a mouse, keyboard, or printer using the peripheral USB-A connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM® 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories.
hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(2) Cable Clamps

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

12V @ 2A

power output

24W

input connector

5.5mm DC Connector

input cable length

1 Meter

output connector

USB 2.0 Type A

output cable length

225mm

peripheral output

500mA

transfer speed

12Mbps

certifications

RoHS
WEEE
CE
FCC
IC
RCM

Warranty

3 year warranty

Weight

0.0 kg

ET401 10"

ET40 10"

ET45 10"
