GDS® Audio™ Amplified Speaker
Part#:RAM-SPEAK-A01 UPC:793442007613
1 139 kr
Incl. VAT

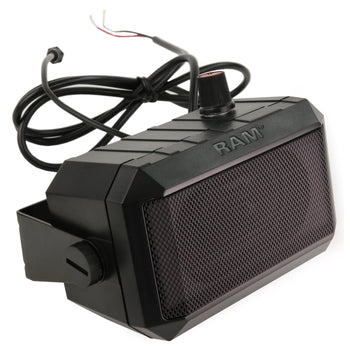

The GDS® Audio™ Amplified Speaker (RAM-SPEAK-A01) delivers powerful, reliable sound for in-cab communication—no batteries required. The speaker can be hardwired into the cab of your vehicle for power using the connected bare wires, while the included 35mm audio jack plugs directly into your device. An adjustable knob allows for up to 93dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS® Ecosystem™, the speaker can be mounted to any GDS® vehicle dock using the RAM® short bracket adapter or RAM® standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS® vehicle dock.
hardware included

Mounting Bracket
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

speaker specifications

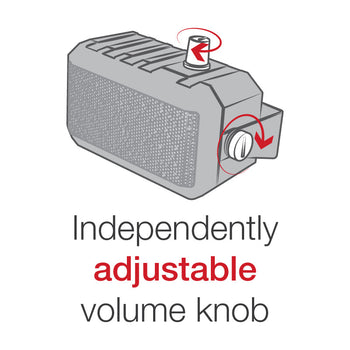

Independently adjustable volume knob

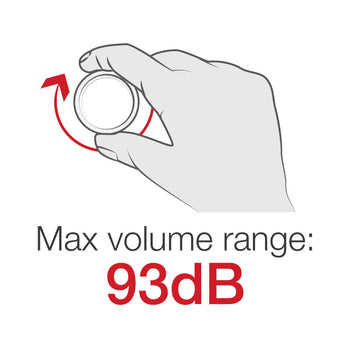

Max volume level: 93dB

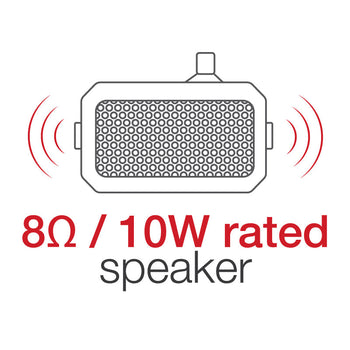

8Ω / 10W rated speaker

packaging type

Box

input voltage

9-26VDC

power output

Peak Power: 10W
RMS Power: 8W

input cable length

1.15 Meter red/black power cable

output cable length

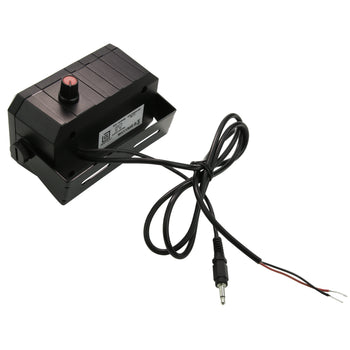

150mm long audio cable with 3.5mm mono plug jack

operating temperature

-20°C to +80°C

storage temperature

-40°C to +85°C

regulatory

Over current protection, short circuit protection and over volatage protection

certifications

FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a

Warranty

3 year warranty

Weight

0.383 kg
