GDS® Audio™ Amplified Speaker with PTT Breakout Feature
GDS® Audio™ Amplified Speaker with PTT Breakout Feature
1 479 kr
Incl. VAT
- PTT-enabled amplification speaker with independent adjustable volume knob

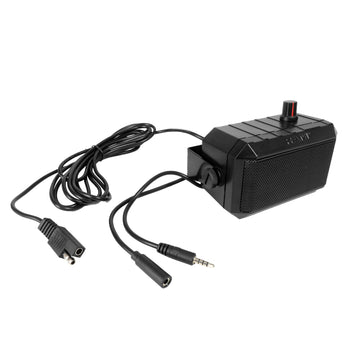

- Includes SAE hardwire power input cable, audio input cable and audio output cable
- 99db max volume level
- Backed by a 3-year warranty
Related RAM® Components

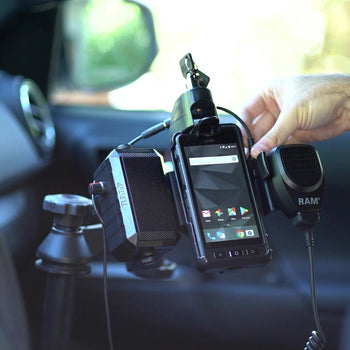

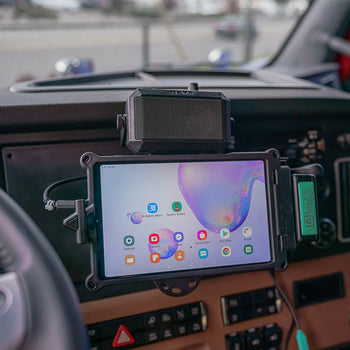

The GDS® Audio™ Amplified Speaker with PTT Breakout Feature (RAM-SPEAK-A03) delivers powerful, reliable sound for in-cab communication—no batteries required. Hardwire it directly into your vehicle or connect via a GDS® hardwire charger using the SAE connector. The built-in audio breakout feature supports an optional PTT microphone or headset (sold separately), enabling half- or full-duplex conversations depending on your setup. With an adjustable output of up to 99dB, this speaker ensures clear audio even in noisy environments. Integrated overcurrent, short circuit, and overvoltage protection provide added peace of mind. Designed as part of the GDS® Ecosystem™, the speaker easily mounts to any GDS® vehicle dock with the included short or standard bracket adapter and hardware.
| hardware included |
Mounting Bracket |
| speaker specifications |

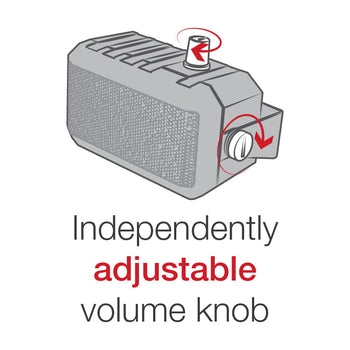

Independently adjustable volume knob |
| packaging type |
Box |
| input voltage |
9-26VDC |
| power output |
Peak Power: 10W |
| input connector |
3.5mm TRRS connector, with a modified CTIA pin map for audio in/out |
| input cable length |
2.5 Meter SAE Cable |
| output cable length |
150mm long audio cable with 3.5mm mono plug jack |
| operating temperature |
-20°C to +80°C |
| storage temperature |
-40°C to +85°C |
| regulatory |
Over current protection, short circuit protection and over volatage protection |
| certifications |
FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a |
| Warranty |
3 year warranty |
| Weight |
0.447 kg |
