RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
Part#:RAM-TB-FHA3-SW1BU UPC:793442027871
Ball size C
2 179 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Combines a 6" friction hinge arm and a 6" swing arm for precise single-axis pivoting and full 360° horizontal rotation

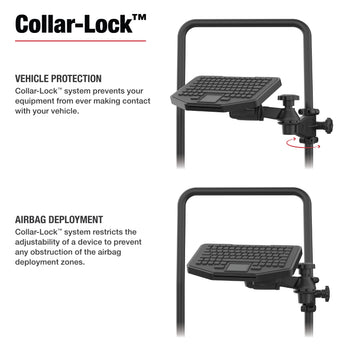

  • Integrated Collar-Lock™ system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact

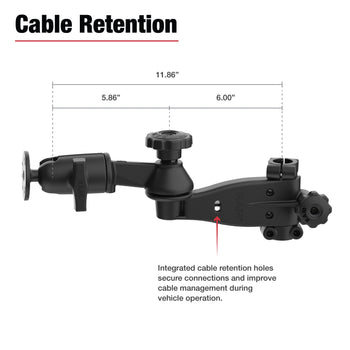

  • Built-in cable retention keeps cords organized
  • Backed by a lifetime warranty

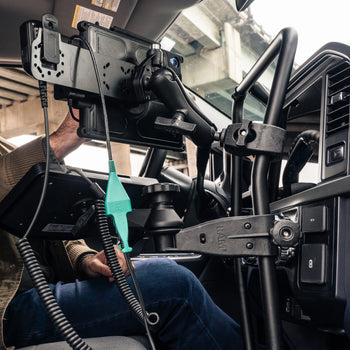

The RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™ (RAM-TB-FHA3-SW1BU) is a versatile attachment designed to mount a keyboard or other accessories to the RAM® Tough-Bar™ with smooth, controlled adjustability. This system combines a 6" friction hinge arm, a 6" swing arm, and a C size RAM® ball for full multi-axis positioning. The friction hinge delivers precise single-axis pivoting, ideal for moving a keyboard side to side, while the swing arm adds 360° of horizontal rotation. The integrated ball and socket connection allows for fine tilt adjustments, letting you position your accessory exactly where you need it or quickly move it aside to access vehicle controls. The built-in cable retention feature keeps cords neatly organized and secured along the arm, preventing snags or strain during adjustment. For added protection, the Collar-Lock™ system acts as a rotational limiter, blocking over-rotation that could send the mount into the dashboard during movement or impact. Together, these components ensure stable, vibration-resistant performance in demanding environments. Complete with a round ball base for compatibility across the RAM® Mounts ecosystem, the Friction Hinge 6" Arm & Swing Arm for Tough-Bar™ offers rugged flexibility and clean cable management for fleet, commercial, and personal vehicle setups.
hardware included

Assembly Hardware

product dimensions

Length: 11.86" (center clamp to center socket)

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag
