RAM® 6" Single Swing Arm with Socket & Ball

Part#:RAM-VB-109-5U UPC:793442906879

Part#:RAM-VB-109-5U UPC:793442906879

C SIZE

ARM

1 279 kr

Fast shipping from Halmstad, Sweden

Official RAM® Mounts distributor

Expert support on mounting solutions

Information

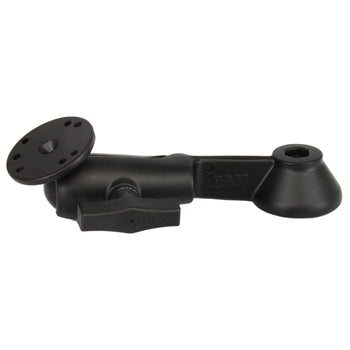

The RAM-VB-109-5U consists of a 6" long single swing arm and 2.5" round base that contains the universal AMPs hole pattern.

hardware included	(1) 3/8"-16 x 4" Hex Bolt (1) 2" Rubber Washer (1) 1.25" Fender Washer (2) Steel Washers (1) Thrust 6-Bearing Washer (1) 3/8"-16 Knob
product dimensions	Swing Arm Length: 6"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.601 kg
