GDS® Ecosystem™ Vehicle Bundle with Monitor, Keyboard & Phone Mount
Part#:RAM-VB-196-GDS-ECO1 UPC:793442012389 Patented
29 349 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
  • Transforms your vehicle into a mobile workstation with highly adjustable RAM® components and enabled by GDS® Tech™ peripherals
  • Includes RAM® No-Drill™ Universal Vehicle Base and tele-pole swing arm system, GDS® View™ 13.3" touch screen monitor, GDS® Keyboard™, RAM® Quick-Grip™ Phone Mount, display bracket, GDS® Tough-Hub™, CLA charger, and USB Type-C Cables
  • Compatible with Samsung DeX

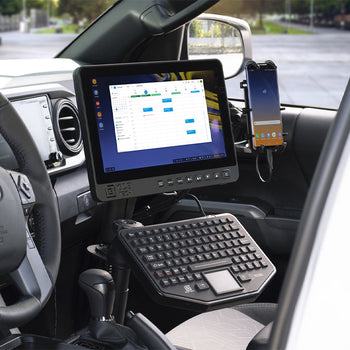

All the benefits of the GDS® Ecosystem™ in one mounting system to create your very own mobile workstation. Centralized around the GDS® View™ 13.3" touch screen monitor, the GDS® Ecosystem™ Vehicle Bundle is mounted on the universal RAM® No-Drill™ vehicle base and tele-pole swing arm system, accompanied by the GDS® Keyboard™ with trackpad, display bracket, RAM® Quick-Grip™ XL phone mount, the GDS® Tough-Hub™, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM® Quick-Grip™ XL and plugging your DeX Cable directly into the GDS® View™ Monitor.
hardware included

Assembly Hardware
(1) HDMI Cable
(1) VGA Cable
(1) USB Type-B to USB Type-A Cable
Hardwire & CLA chargers for monitor

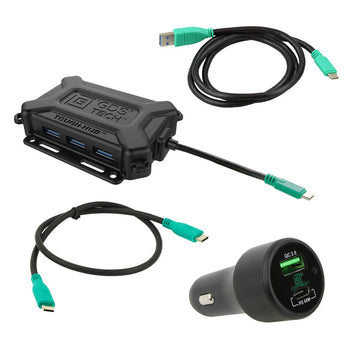

USB Type-C cable & CLA charger for hub & phone
holder dimensions

For Phone Holder:
Height Range: 5.75" - 8.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"
monitor specifications

Screen Size: 13.3"
Anti-glare and Anti-fingerprint treatment applied on LCD
Max Resolution: 1920 x 1080 high resolution
Aspect ratio: 16:9
Tough Panel: 2-point capacitive touch
Audio: (2) 2W Speakers
Brightness: 800nits
Contrast ratio: 1000:1
Red monochrome night mode to reduce eye strain for night viewing
Control buttons on front of monitor for easy access
Zip tie attachment loops for cable management
materials

Powder coated steel
Marine grade-aluminum
High strength composite
packaging type

Box
input voltage

Monitor: 10-30V DC
CLA Charger for Hub: 12-24V DC
power output

63W Total (45W for Type-C & 18W for Type-A)
output current

6A max
operating temperature

-10°C to +50°C
storage temperature

0°C to +45°C
ports

CLA Charger:
(1) Type-C Female (PD)
(1) Type-A Female (QC 3.0)

GDS® Tough-Hub™:
(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)
(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth
(1) HDMI Port - Resolution up to 4Kx2K@30Hz
(1) USB Type-C Port - Supports data and PD charging 100W (20V/5A))

GDS® View™ Monitor:
(1) Power Input
(1) HDMI
(1) VGA
(1) 3.5mm Audio Output
(1) USB Type-B (Host Input)
(3) USB Type-A (Peripheral Outputs)
regulatory

Meets SAE J-1113
Integrated Short Circuit Protection (SCP)
certifications

MIL-STD-810H 514.5 Vibration Tested
FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
Weight

12.247 kg
Additional Information
Vehicles in this compatibility list have been tested and confirmed with this base. For all other vehicles, to determine fitment please review the steps in this document:

Universal Vehicle Laptop Mount Compatibility Guide


Depending on your vehicle, some installations may limit the adjustability of the passenger seat.

Consists of

GDS® View™ 13.3" Touch Screen Monitor RAM-GDS-MON-13-1
15 699 kr
Liquid error (snippets/product_tile_3 line 108): comparison of String with 0 failed
GDS® Keyboard™ with Track Pad RAM-KB2-USB
7 719 kr
RAM® 8” Upper Pole and Double Ball 75x75mm VESA Mount RAM-VP-SW2F-8-2461
Ball Icon C SIZE
Arm Icon ARM
4 129 kr

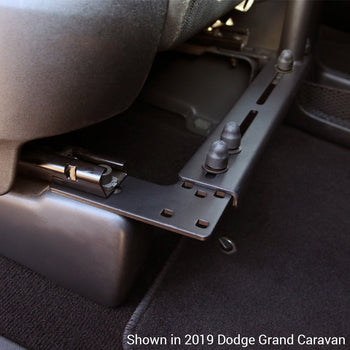

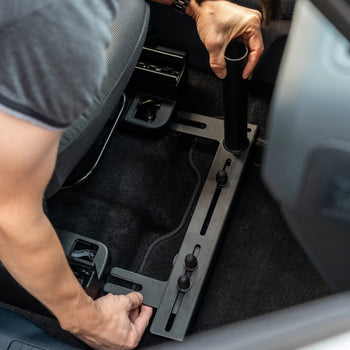

RAM® No-Drill™ Universal Vehicle Base RAM-VB-196
2 239 kr
RAM® Standard Heavy Duty Accessory/Display Bracket RAM-DIS-103-2AU
779 kr
RAM® Double Ball Drill-Down Mount with Diamond Plate - Short RAM-B-138U-A
Ball Icon B SIZE
Arm Icon SHORT ARM
579 kr
RAM® Quick-Grip™ XL Large Phone Holder RAM-HOL-PD4U
489 kr
GDS® Type-C and Type A 2-Port Cigarette Charger RAM-GDS-CHARGE-PPS-CIGC
799 kr
GDS® Genuine USB Type-C 3.1 Male to Male .5M Cable RAM-GDS-CAB-USBC-CMCMU
459 kr

Phones with Samsung DeX

Equinox (2018-2024)

Traverse (2018-2024)

Grand Caravan (2008-2020)

Escape (2020-2025)

Maverick (2022-2025)

Terrain (2018-2024)

Prius (2016-2022)

RAV4 (2019-2025)

Tacoma (2024-2025)
