RAM® U-Bolt Mount for Brother PocketJet Series - Medium
Part#:RAM-VPR-101-1 UPC:793442911149 Patented
Ball size C
Arm length Medium
Availability Only a few left
2 499 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
Related RAM® Products
RAM® Add-A-Ball™ Accessory Ball for C Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for C S...
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate

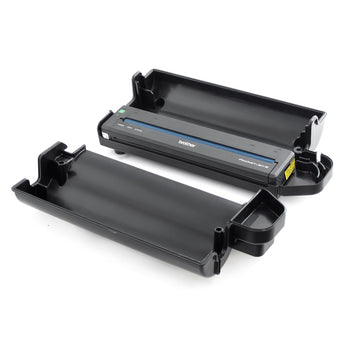

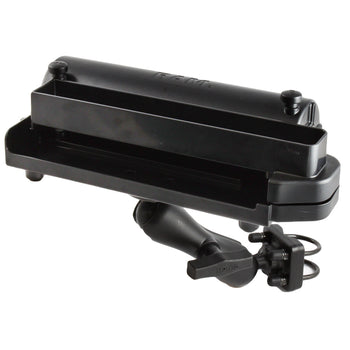

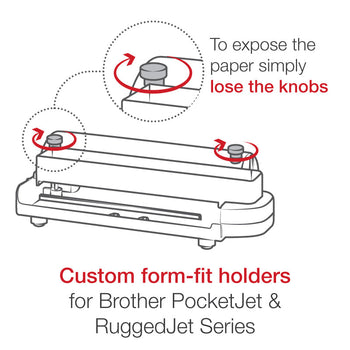

The RAM-VPR-101-1 is designed to hold Brother® PocketJet® Series portable printers, as well as the Printek Interceptor 80 Series. The cradle uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM Tele-Pole™ and other poles with a diameter from 1.25" to 1.88".
hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
clamp range

1.25" - 1.5" diameter
socket to socket length

4.66"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

1.134 kg
