VEHICLE PRINTER SYSTEM FOR SMALL PRINTER
Part#:RAM-VPR-105-1 UPC:793442925887 Patented
Ball Icon C SIZE
Arm Icon MED ARM
2 319 kr

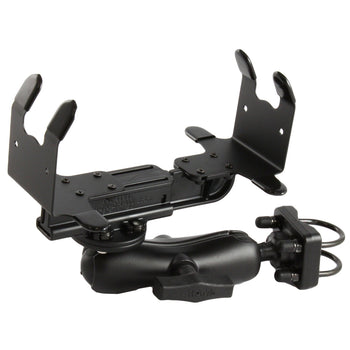

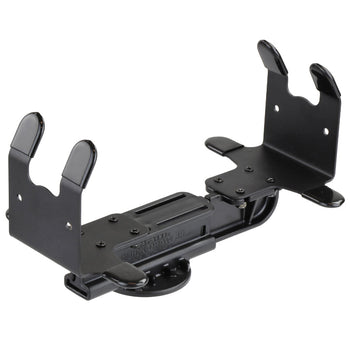

The RAM-VPR-105-1 consists of a double-u-bolt base, double socket arm and RAM® Quick Draw™ Jr. printer holder. The RAM® Quick Draw™ Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer.

The RAM-VPR-105-1 consists of a double-u-bolt base, double socket arm and RAM® Quick Draw™ Jr. printer holder. The RAM® Quick Draw™ Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer.
hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

holder dimensions

Max Height: 2.5"
Width Range: 6.625" - 10.5"

clamp range

1.25" - 1.5" diameter

socket to socket length

4.66"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Powder coated steel
Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.107 kg

MW-100

MW-120

MW-140

MW-260

QL 220

QL 320

QL 420 Plus

RP4T

M4L
