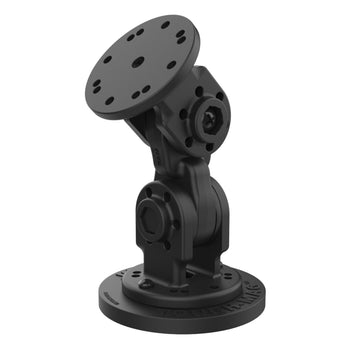

RAM® Dual 90-Degree Pivot Magnetic Mount
Part#:RAP-101-PV4-2P-NK-MAG88U UPC:793442025532
1 819 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Low-profile, magentic mounting solution for heavy-duty environments

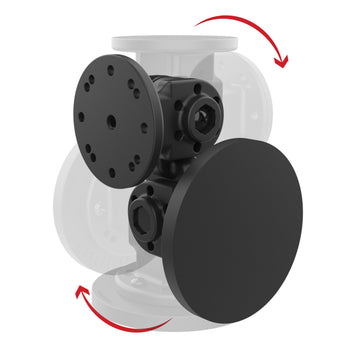

  • Dual articulation joints pivot up to 180-degrees in each direction barrel nut provide tamper resistance

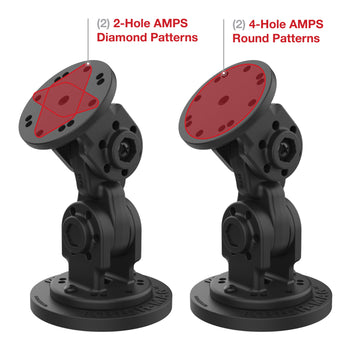

  • One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

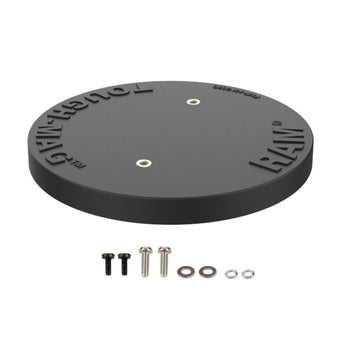

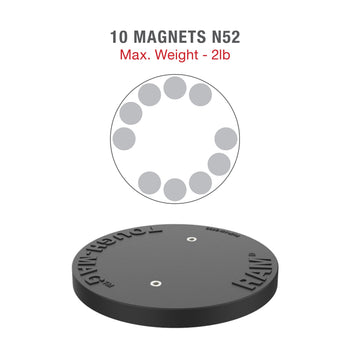

The RAM® Dual 90-Degree Pivot Magnetic Mount with Knob (RAP-101-PV4-2P-MAG88U) is a low-profile, magnetic mounting solution with two articulation hinges in opposing directions so users can easily pivot their device up to 180-degrees in all directions One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock while the other end features the RAM® Tough-Mag™ magnetic base. This solution uses tooth-lock washers to allow users to pivot their device up to 270-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments. The RAM® Tough-Mag™ base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

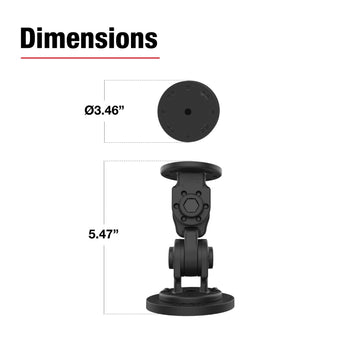

product dimensions

Overall Height: 5.47"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
plate size

Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter
materials

High strength composite
N52 Magnets (Qty 10)
packaging type

Poly Bag
Weight

0.375 kg
