RAM® Dual 90-Degree Pivot Mount with Knob
Part#:RAP-101-PV4-2PU UPC:793442025501
859 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Low-profile, drill-down mounting solution for heavy-duty environments

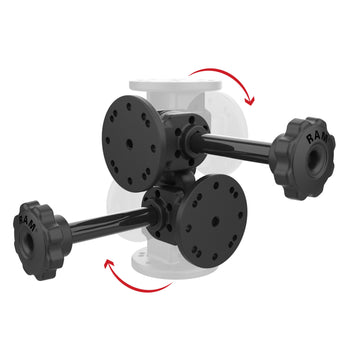

  • Dual articulation joints pivot up to 180-degrees in each direction extended knobs for easy adjustments

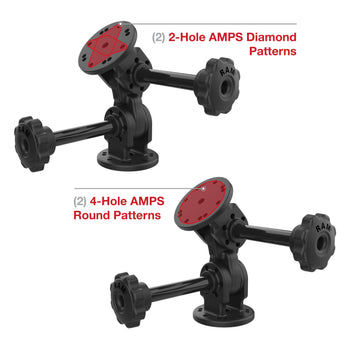

  • Each end features two 2-hole AMPS and two 4-hole AMPS patterns secure your device to one end and the other to your preferred surface
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

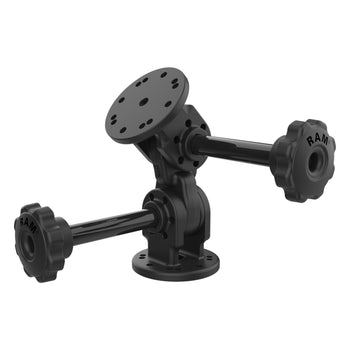

The RAM® Dual 90-Degree Pivot Mount with Knob (RAP-101-PV4-2PU) is a low-profile, drill-down mounting solution with two articulation hinges in opposing directions so users can easily pivot their device up to 180-degrees in each direction. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device to achieve the ideal viewing angle.

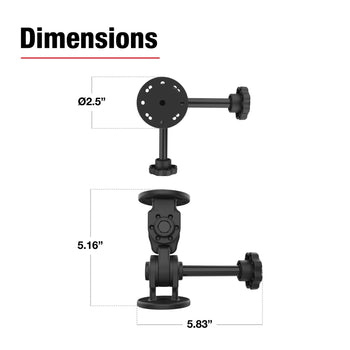

product dimensions

Overall Height: 5.16"
Overall Width with Knobs: 5.83"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
plate size

2.5" Diameter
materials

High strength composite
packaging type

Poly Bag
Weight

0.326 kg
