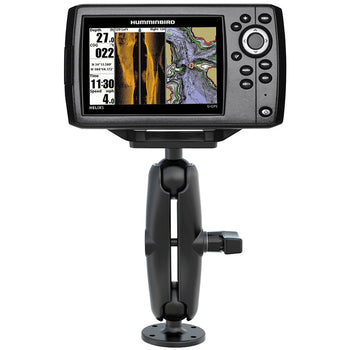

RAM® Composite Double Ball Mount for Humminbird Helix 5
Part#:RAP-202-153-202 UPC:793442950964
Ball size C
Arm length Medium
899 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
The RAP-202-153-202 consists of a round 2.5" diameter round base (Universal AMPs Hole Pattern), double socket arm and 1.5" x 3" rectangular base. The rectangular base contains four holes with a center to center pattern of 1" x 2.5". The round base and double socket arm are made of a corrosion resistant high-strength composite material.
product dimensions

Overall Height: 7.35"
socket to socket length

4.66"
hole pattern

Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1" x 2.5"
plate size

Top Plate: 1.5" x 3"
Bottom Plate: 2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

High strength composite
packaging type

Retail Bag
Weight

0.476 kg
