RAM-A-CAN 2 UNIVERSAL CUP HOLDER W/ DIA
Part#:RAP-299-3-B-102U UPC:793442935442 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 029 kr

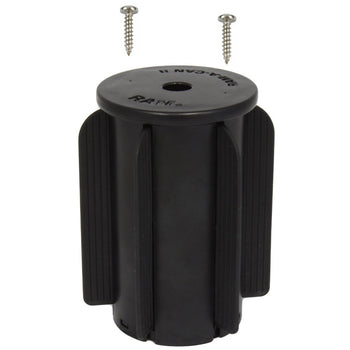

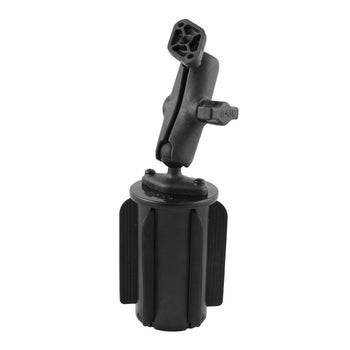

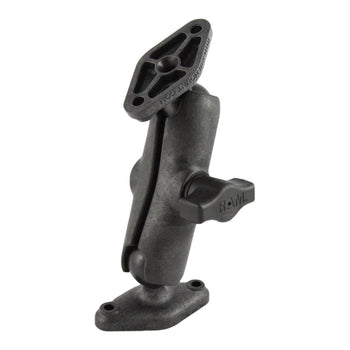

The RAP-299-3-B-102U consists of a double socket arm, two diamond bases and RAM-A-CAN™ II cup holder base. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The RAM-A-CAN™ II cup holder base serves as a mounting point for the diamond base.

The RAP-299-3-B-102U consists of a double socket arm, two diamond bases and RAM-A-CAN™ II cup holder base. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The RAM-A-CAN™ II cup holder base serves as a mounting point for the diamond base.
hardware included

Assembly Hardware

product dimensions

Overall Height: 9.75"

wedge dimensions

Fits cup holders between 2.57" - 3.5" inside diameter

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

plate size

2.43" x 1.31"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

High strength composite

packaging type

Poly Bag

Weight

0.699 kg
