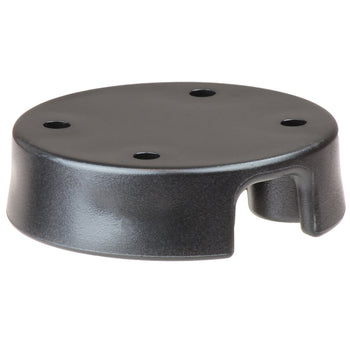

RAM® Cable Manager with AMPS Hole Pattern for Electronic Mounts
Part#:RAP-403 UPC:793442944192
289 kr
  • Includes 4-hole AMPS pattern mounting holes for RAM® drill-down bases
  • 0.56" x 0.7" side cutout allows for routing cables from the power source to the mounted device
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2 5/8" round plates with AMPs hole pattern.
hardware included

(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers

product dimensions

Cable Slot Height: .56"
Cable Slot Width: .7"

clamp range

Max mounting surface thickness: .68"

hole pattern

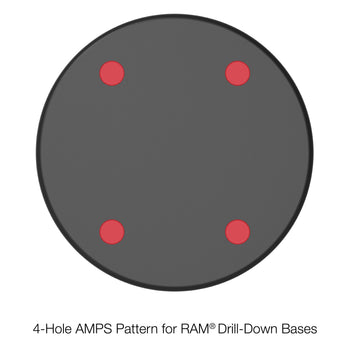

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Retail

Weight

0.108 kg

Additional Information
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.
