RAM® Composite Universal Marine Electronic Mount - Short
Part#:RAP-B-111-A UPC:793442907517
Ball Icon B SIZE
Arm Icon SHORT ARM
629 kr

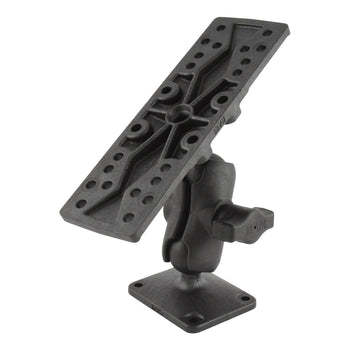

The RAP-B-111-A consists of a 2" x 2.5" rectangle base, SHORT length double socket arm and 6.25" x 2" rectangle plate. The rectangle base contains pre-drilled holes, including the universal AMPS hole pattern. The 6.25" x 2" rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
product dimensions

Overall Height: 3.69"
socket to socket length

1.75"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
See Drawing
plate size

Top Plate: 6.25" x 2"
Bottom Plate: 2" x 2.25"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Retail Bag
Weight

0.381 kg

Består av

RAM® Composite Ball Base with 1.5" x 2" 4-Hole Pattern RAP-B-202U-225
Ball Icon B SIZE
Arm Icon ARM
169 kr
Beställningsvara
RAM® Composite Double Socket Arm - B Size Short RAP-B-201U-A
Ball Icon B SIZE
Arm Icon SHORT ARM
209 kr

GPSMAP 162

GPSMAP 168

GPSMAP 175

GPSMAP 180

GPSMAP 180C

GPSMAP 182

GPSMAP 185

GPSMAP 188

GPSMAP 232

GPSMAP 238

Striker 5 Series

Striker Plus 5cv

Striker Vivid 5cv
