UNPK RAM 1.5 X 3 MNT W/ TRACK BASE
Part#:RAP-B-202-153-354-TRA1U UPC:793442955099
Ball Icon B SIZE
Arm Icon MED ARM
719 kr

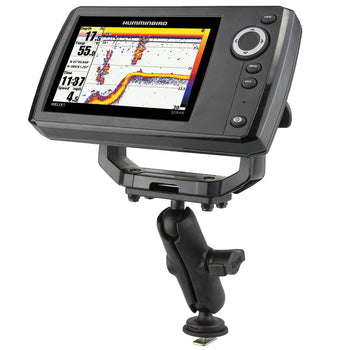

The RAP-B-202-153-354-TRA1U consists of a Track Ball™ base, composite double socket arm and 1.5" x 3" rectangular plate. The rectangular plate contains four holes that will line up with the Humminbird Helix 5. The Track Ball™ will connect to virtually any track system including the RAM Tough-Track™

The RAP-B-202-153-354-TRA1U consists of a Track Ball™ base, composite double socket arm and 1.5" x 3" rectangular plate. The rectangular plate contains four holes that will line up with the Humminbird Helix 5. The Track Ball™ will connect to virtually any track system including the RAM Tough-Track™
hardware included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt

t bolt dimensions

.48" x .95"

socket to socket length

3"

hole pattern

1" x 2.5"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

High strength composite

packaging type

Poly Bag

Weight

0.186 kg

HELIX 5 DI

HELIX 5 DI GPS

HELIX 5 SI GPS

HELIX 5 SI GPS KVD

HELIX 5 SONAR GPS

HELIX 5 SONAR

HELIX 5 XD GPS
