RAM® Track Ball™ Mount for Lowrance Elite-4 & Mark-4 Series
Part#:RAP-B-202-LO11-354-TRA1U UPC:793442955143
Ball size B
Arm length Medium
649 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

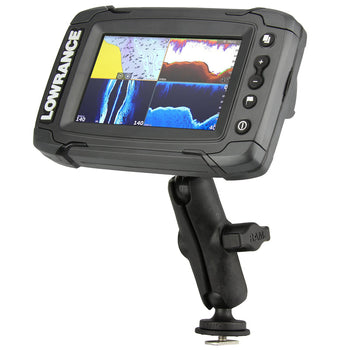

The RAP-B-202-LO11-354-TRA1U consists of a Track Ball™ base, composite double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook 4 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. A key feature of the mount is a 1" diameter rubber ball and socket system with adjustment points at both socket ends of the arm. Combined with RAM's rubber ball and socket technology, this allows for high adjustibility to achieve perfect viewing angles. Compatible with virtually any track system including the RAM Tough-Track™.
hardware included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
t bolt dimensions

.48" x .95"
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Poly Bag
Weight

0.177 kg
Additional information
This product is not compatible with the standard Lowrance Elite-7.

Consists of

RAM® Track Ball™ Base with T-Bolt Attachment - B Size RAP-B-354U-TRA1
Ball size B
259 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball size B
Arm length Medium
339 kr
RAM® Quick Release Ball Adapter for Lowrance Elite-4 & Mark-4 Series RAM-B-202U-LO11
Ball size B
269 kr

Elite 3x

Elite 3x DSI

Elite-4

Elite-4 DSI

Elite-4 Gold

Elite-4x

Elite-4x DSI

Elite-4m

Mark-4
