RAM® Twist-Lock™ Composite Suction Cup Mount with 1/4"-20 Camera Adapter
Part#:RAP-B-224-1-366 UPC:793442951008 Patented
Ball size B
Arm length Medium
829 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Black 3.5" Adhesive Plate for Suction Cups
RAM® Black 3.5" Adhesive Plate for Suct...
RAM® Portable Friction Dashboard Base
RAM® Portable Friction Dashboard Base

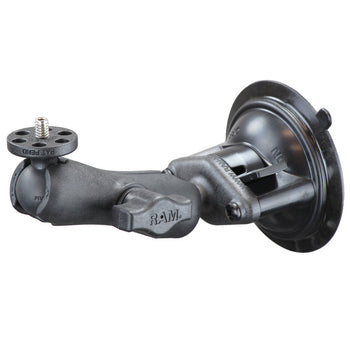

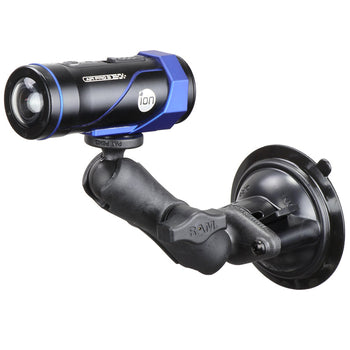

The RAP-B-224-1-366 consists of a 3.3" suction cup twist lock base, high strength composite double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

Assembly Hardware
suction size

3.3" Diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Retail Bag
Weight

0.227 kg
Additional information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
