RAM® Composite Diamond Ball Base with Backing Plate
Part#:RAP-B-238-BU UPC:793442950919
Ball size B
229 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Composite Double Socket Arm - B Size Medium
Recommended add-on
RAM® Composite Double Socket Arm - B Size Medium
229 kr
Details

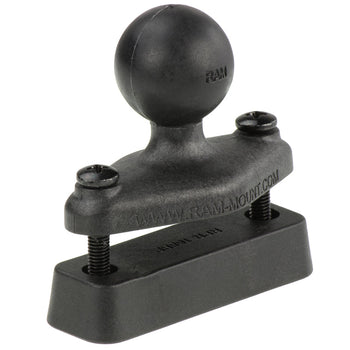

The RAP-B-238-BU consists of a 1" diameter rubber ball connected at right angles to a 2.43" x 1.31" diamond base. The base has two holes 1.912" from center to center, matching diagonally with the industry standard 4-Hole AMPS hole pattern. Included with this base is a highstrength composite backing plate, connected with stainless steel screws and nuts for reinforcing any flat surface that the ball is mounted against.
hardware included

(1) Composite Backing Plate
(2) #10-32 x 1.25" Machine Screws
(2) #10-32 Nyloc Nuts
hole pattern

2-Hole AMPS: 1.912"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Poly Bag
Weight

0.064 kg
