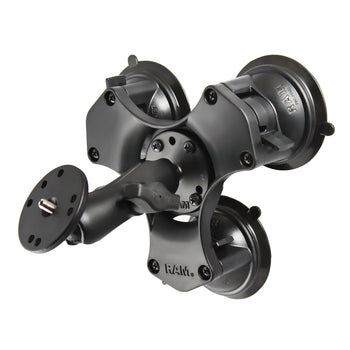

RAM® Twist-Lock™ Triple Suction Mount with Round Plate and 1/4"-20 Stud
Part#:RAP-B-365-224-202AU UPC:793442927515 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 719 kr
The RAP-B-365-224-202AU consists of a triple 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

Assembly Hardware

suction size

(3) 3.3" Diameter Bases, Total Width 7.95"

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

thread pitch

1/4"-20 x .25"

plate size

2.5" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.572 kg

Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Består av

that contain 1/4"-20 Female Threaded Hole
