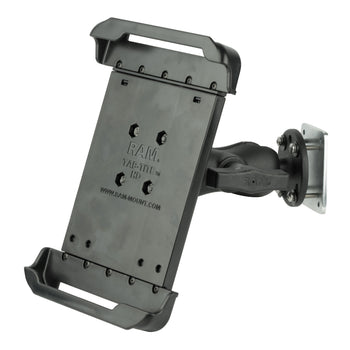

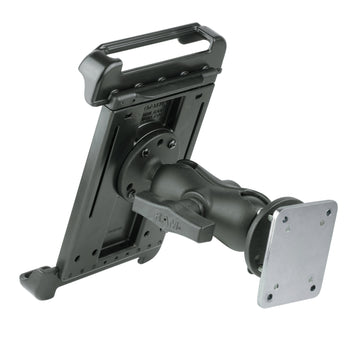

RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases
Part#:RAM-101B2-TAB23U UPC:793442816574 Patented
Ball size C
Arm length Short
1 799 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded holder secures 7"-8" tablets with a case interchangeable end cups allow you to modify the holder when upgrading devices
  • Drill-down mounting solution choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
  • 2.10" x 2.60" steel backing plate attaches to a variety of RAM® Mounts ball bases
  • Ball and socket technology allows for near-infinite adjustability
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Add-A-Ball™ Accessory Ball for C Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for C S...
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
The RAM® Tab-Tite™ bundle is a rugged mount including the RAM® Tab-Tite™, RAM® Universal Double Ball Mount with Two Round Plates, and RAM® Backing Plate Adapter. The RAM® Tab-Tite™ spring loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The RAM-101U-B consists of a short double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 2.10" x 2.60" steel backing plate with #8-32 threaded holes attaches to a variety of RAM® Mounts ball bases.
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
holder dimensions

Height Range: 8.32" - 10.92"
Width Range: 4.43" - 5.3"
Depth Range: .13" - .62"
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
Powder coated steel
packaging type

Poly Bag
Weight

0.76 kg
