RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro, Pro Thermal & Pro E
Part#:RAM-138-S-SNM5PL-V7B1U UPC:793442026980
Ball size C
Arm length Medium
10 029 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

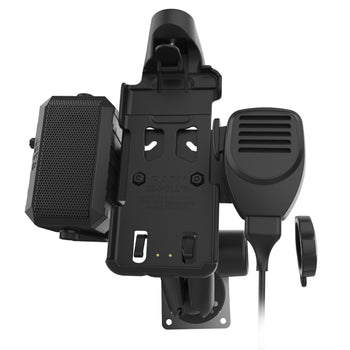

  • Bundle for Sonim XP Pro, Pro Thermal & Pro E includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

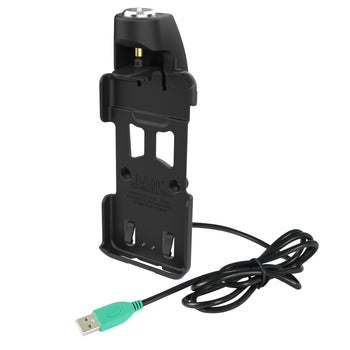

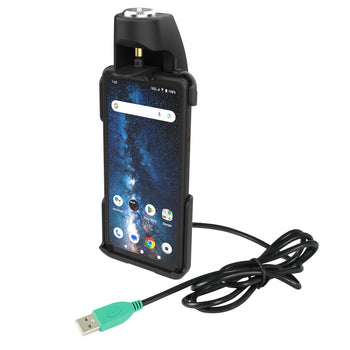

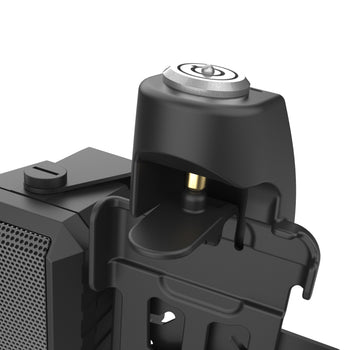

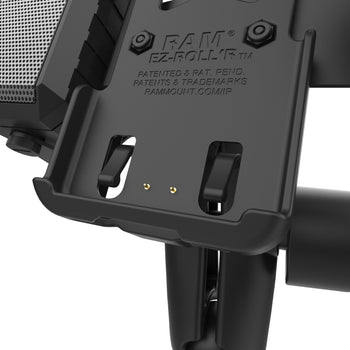

  • Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP Pro provides charging through two integrated pogo pins and USB-A cable

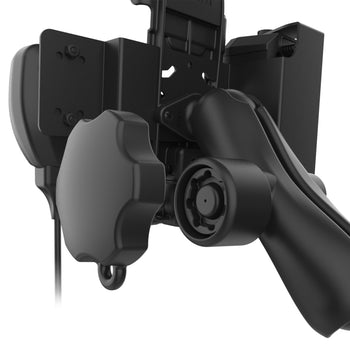

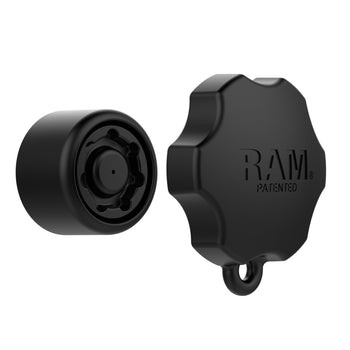

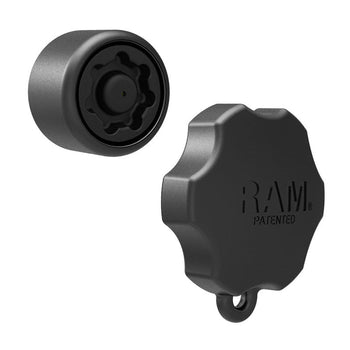

  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • RAM® components backed by lifetime warranty dock and electronics backed by a 3-year warranty

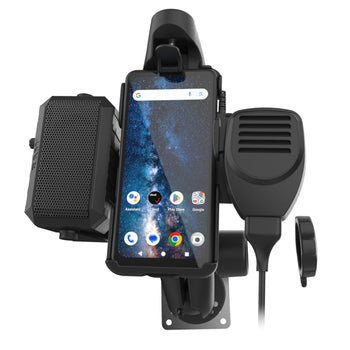

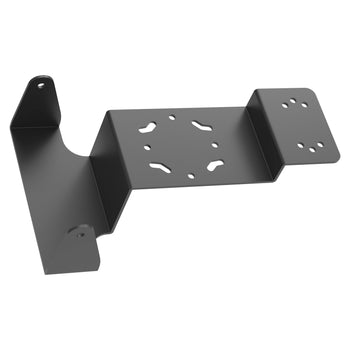

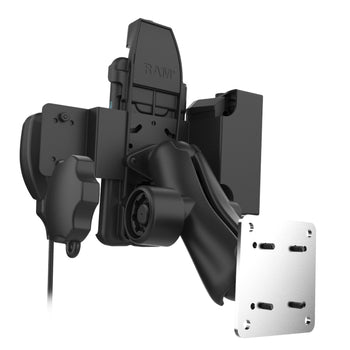

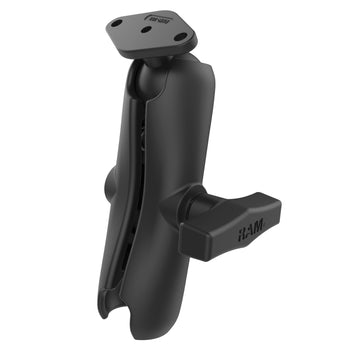

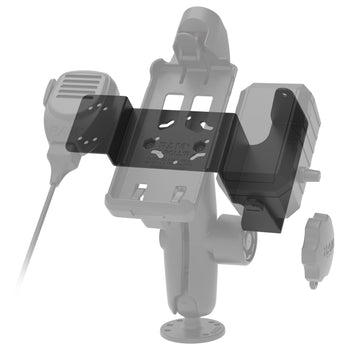

The RAM® Double Ball Mount for Sonim XP Pro, Pro Thermal & Pro E with Speaker & Hardwire Bundle (RAM-138-S-SNM5PL-V7B1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP Pro, Pro Thermal & Pro E, double ball mount with RAM® Pin-Lock™ Security Knob, speaker, microphone, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included USB-C to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger and backing plate hardware.
hardware included

Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob

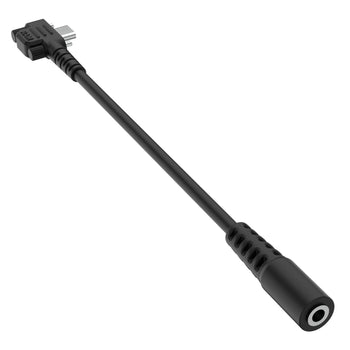

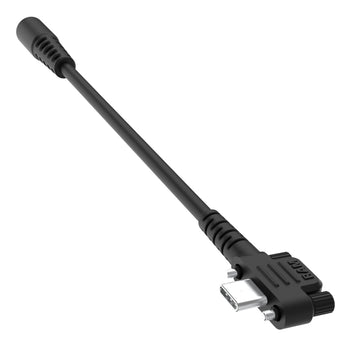

(1) USB-C to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger
(1) Backing Plate & Hardware Assembly
speaker specifications

Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
Powder coated steel
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

Charger: Female USB Type A
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

3.378 kg
Additional information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
