RAM® Double Socket Arm with Steel Key Lock Knob - C Size Medium
Part#:RAM-201LSU UPC:793442929151
Ball size C
Arm length Medium
1 069 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
  • Standard RAM® double socket arm provides an ideal overall length of 5.5" and a socket-to-socket length of 4.66" includes RAM® Steel Key Lock Knob security knob and key
  • Attaches to any C size RAM® ball component, including mounting bases and device holders double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM-201LSU, standard double socket arm with steel locking knob, has a socket at both ends that accommodates 1.5" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles. The locking knob, includes a brass 1/4"-20 thread this allowing you to disengage the screwing of the knob. Once you have set your mount in the location you need, you can lock it in place and feel safe that your mounted device will stay right where you left it.
hardware included

(2) Keys
product dimensions

Overall Length: 5.69"
socket to socket length

4.66"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.426 kg
Additional information
Steel vs Brass Knobs:While both materials offer the same locking functionality, brass material offers more corrosion resistance making it more suitable for outdoor environments, while steel material is more cost effective but primarily recommended for enclosed cockpits or indoor environments. The threads in this knob contain steel.

Innehåller

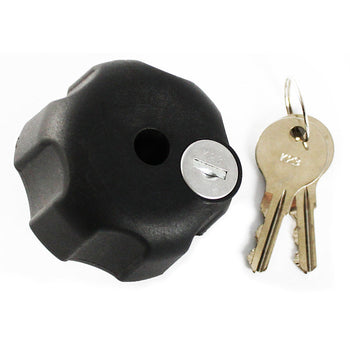

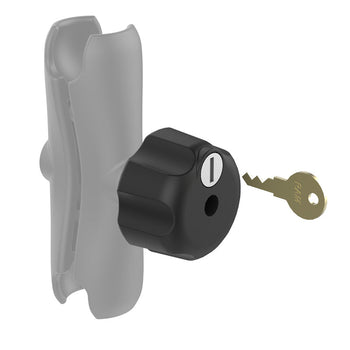

RAM® Key Lock Knob with Steel Insert for C Size Socket Arms RAM-KNOB5LSU
509 kr
