Standard
RAM® Round Plate with Ball - C Size
Part#:RAM-202U UPC:793442001239
Ball size C
319 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
RAM® Double Socket Arm - C Size Medium
Recommended add-on
RAM® Double Socket Arm - C Size Medium
529 kr
Details
  • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

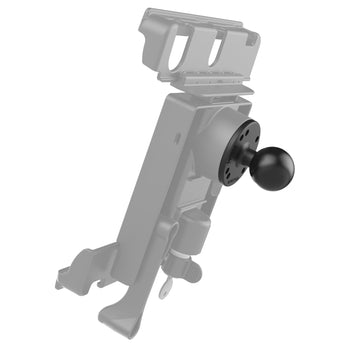

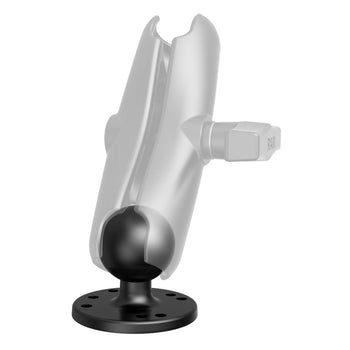

The RAM® Round Plate with Ball (RAM-202U) features a 1.5" C size overmolded rubber ball attached to a 2.5" diameter round plate. This mounting component includes pre-drilled holes in the universal 4-hole AMPS pattern and is constructed from powder-coated, marine-grade aluminum for long-lasting durability in demanding environments. The ball base can function as an adapter—connecting to devices or holders with matching hole patterns—or as a drill-down base mounted directly to a surface.
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.104 kg
