RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover7 Pro & 6 Pro
Part#:RAM-B-101-225B2-SAM84-V7B1U UPC:793442025877
Ball size B
Arm length Medium
3 569 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

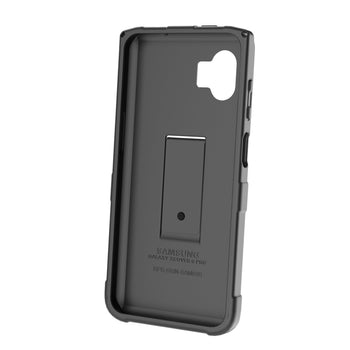

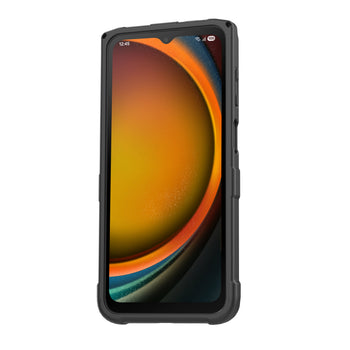

RAM® Skin™ for Samsung Galaxy XCover7 Pro & 6 Pro
Recommended add-on
RAM® Skin™ for Samsung Galaxy XCover7 Pro & 6 Pro
549 kr
Details
RAM® Screen Protector for XCover7 Pro & 6 Pro - 10-Pack
Recommended add-on
RAM® Screen Protector for XCover7 Pro & 6 Pro - 10-Pack
979 kr
Details

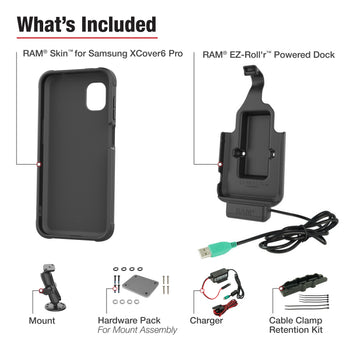

  • Bundle includes the RAM® EZ-Roll'r™ dock, RAM® Skin, B size double ball mount with medium arm, backing plate adapter, and cable clamp
  • Powered dock designed specifically for the Samsung Galaxy XCover7 Pro or XCover6 Pro wrapped in the RAM® Skin™ or Samsung OEM case
  • Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection
  • Backed by a 3-year warranty

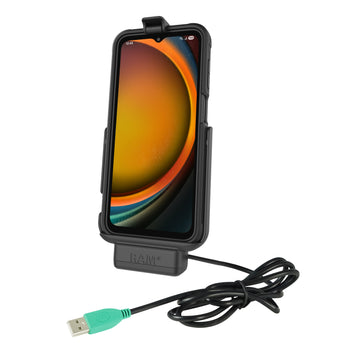

The RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover7 Pro and XCover6 Pro (RAM-B-101-225B2-SAM84-V7B1U) is a comprehensive kit of everything needed to deploy the devices in your fleet. It contains one RAM® EZ-Roll'r™ dock, RAM® Skin for the XCover7 Pro or XCover6 Pro, and double ball mount with backing plate. The dock uses a USB Type-A female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® EZ-Roll'r™ Dock is backed by a 3-year warranty.
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC
output current

2.5A max
input cable length

1.2 Meters including 2 pole flat marine connector
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Overvoltage/Load Dump Compliance: Meets SAE J-1113
certifications

Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
Weight

0.739 kg
