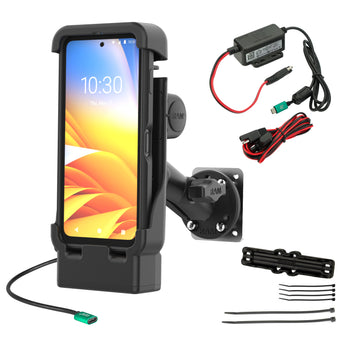

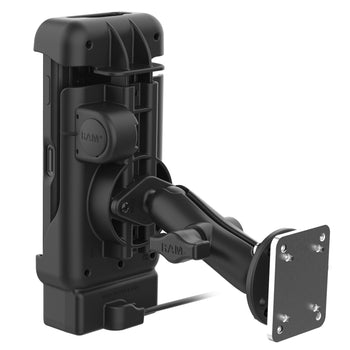

RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45
RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45
B SIZE
MED ARM
5 229 kr

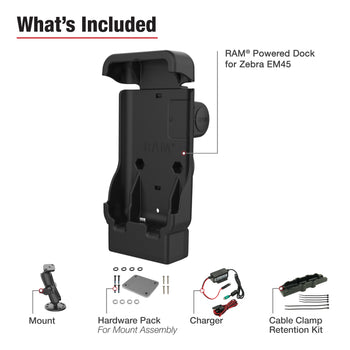

- Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp
- Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45
- Back cavity accommodates OEM ergonomic accessories
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
The RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3C-2U) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM® Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM® Vehicle Dock is backed by a 3-year warranty.
| hardware included |
Assembly Hardware |
| socket to socket length |
3" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Steel |
| packaging type |
Poly Bag |
| input voltage |
10-30VDC |
| output voltage |
5-15VDC |
| output current |
3A max |
| input cable length |
1.2 Meters including 2 pole flat marine connector |
| operating temperature |
-10°C to +70°C |
| storage temperature |
-40°C to +70°C |
| regulatory |
Overvoltage/Load Dump Compliance: Meets SAE J-1113 |
| certifications |
Integrated Short Circuit Protection |
| Weight |
0.0 kg |
Innehåller

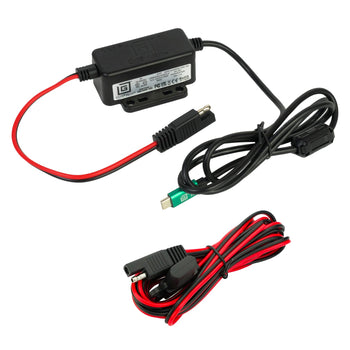

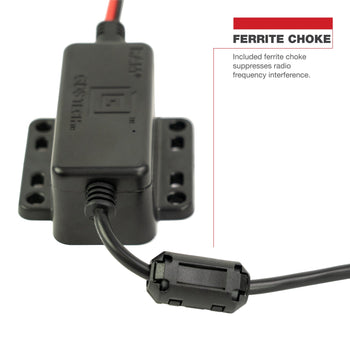

GDS® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C
RAM-GDS-CHARGE-V3C-3U
1 739 kr
EM45
