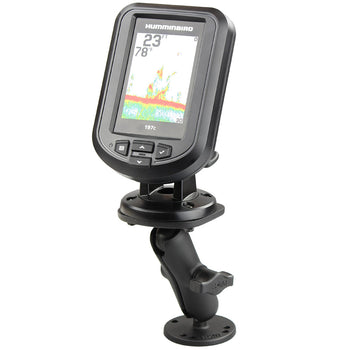

RAM® Drill-Down Double Ball Mount for Humminbird Piranha + More
Part#:RAM-B-107-1U UPC:793442110726
Ball Icon B SIZE
Arm Icon MED ARM
759 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
The RAM-B-107-1U, powder coated marine grade aluminum mount, consists of a double socket arm, one 2.5" diameter round base and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at the cradle base and bottom base. With a twist of the arm knob, you can move the marine mount to your optimum viewing position.
product dimensions

Overall Height: 5"
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size

Top Plate: 3.29" x 2.85"
Bottom Plate: 2.5" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.281 kg

Innehåller

RAM® Ball Adapter for Humminbird Piranha + More RAM-B-107-1BU
Ball Icon B SIZE
Arm Icon ARM
329 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr
RAM® Round Plate with Ball - B Size RAM-B-202U
Ball Icon B SIZE
Arm Icon ARM
189 kr

Cuda 240i

Cuda 240

Cude 168

Cuda 128

FishEasy 320C

FishEasy 240

Piranha MAX 20

Piranha MAX 15

Piranha MAX 10

X-4

X-4 Pro
