RAM® Strap Hose Clamp Mount with Hardware for Garmin GPSMAP + More
RAM® Strap Hose Clamp Mount with Hardware for Garmin GPSMAP + More
B SIZE
MED ARM
1 049 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions

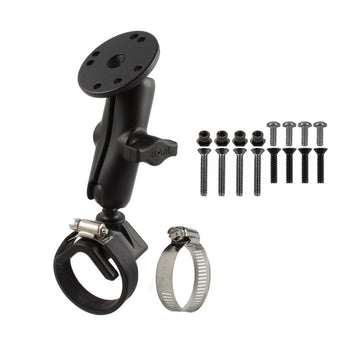

The RAM-108-G1 consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large variety of third party cradles and mounts. The strap mount base fits a rail diameter from 1.0" to a maximum of 1.9". The 1" rubber ball is at a right angle to the mount base placing the ball at a right angle to the rail. Included with the base is one 6.0" and one 8.0" long metal strap is included with this base along with a 5.5" long (approximate) strip of rubber to avoid any scratching or marking of your rail.
| hardware included |
(4) #6-32 x 5/8" Machine Screws |
| clamp range |
1" - 2.1" diameter |
| socket to socket length |
3" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Retail Bag |
| Weight |
0.345 kg |
Innehåller
RAM® Round Plate with Ball & Mounting Hardware for Garmin GPSMAP + More
RAM-B-202-G1U
B SIZE
ARM
299 kr
B SIZE
ARM
StreetPilot III
GPSMAP 172-250
