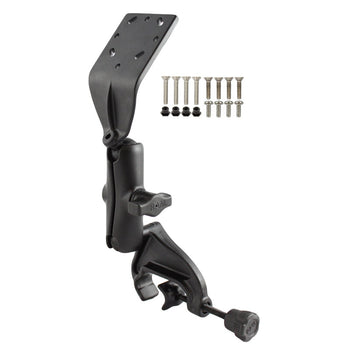

RAM® Double Ball Yoke Mount with Angled Plate & Garmin Mounting Hardware
Part#:RAM-B-125-G1U UPC:793442112577
Ball Icon B SIZE
Arm Icon MED ARM
1 199 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
The RAM yoke mount, with extension plate, consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large variety of third party cradles and mounts.
hardware included

(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts
clamp range

.625" - 1.25"
socket to socket length

3"
hole pattern

Various AMPS Hole Patterns
See Drawing
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.401 kg

Innehåller

RAM® Curved Extension Base with Ball & Mounting Hardware RAM-B-125B-G1U
Ball Icon B SIZE
Arm Icon ARM
419 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr
RAM® Yoke Clamp Base with Ball RAM-B-121BU
Ball Icon B SIZE
Arm Icon ARM
569 kr

StreetPilot III

GPSMAP 172-250
