RAM® ATV/Side By Side Rail Mount for Garmin Astro 320, GPSMAP 62 + More
Part#:RAM-B-149Z-2-GA41U UPC:793442930256 Patented & Pats. Pend.
1 119 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • This RAM® GPS Holder was designed specifically for the Garmin Astro 320, GPSMAP 62 & 64 Series GPS devices
  • Rail and bar base for Side By Sides and ATVs includes strap clamp and U-bolt components
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® EZY-Mount™ Quick Release Adapter Kit
RAM® EZY-Mount™ Quick Release Adapter Kit

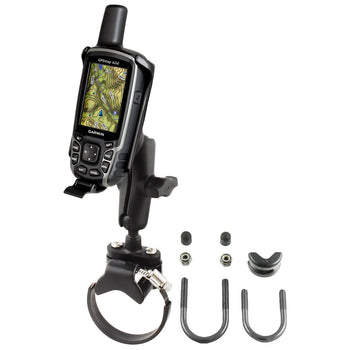

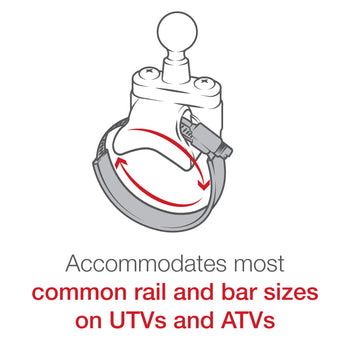

The RAM-B-149Z-2-GA41U consists of a steel strap base, u-bolt bases, double socket, diamond adapter base and high strength composite cradle. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on Side By Side’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. With the ball base in place, you have the foundation for mounting everything from GPS Devices, RAM Aqua Boxes, Spotlights and Radios. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.59 kg

Innehåller

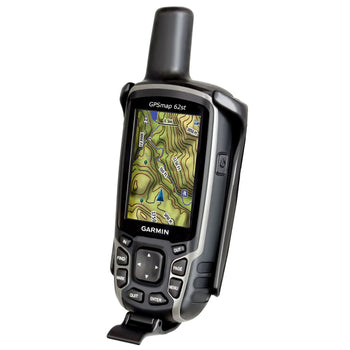

RAM® Form-Fit Cradle for Garmin Astro 320, GPSMAP 62 & 64 Series RAM-HOL-GA41U
Availability Only a few left
229 kr
RAM® Double Socket Arm with Diamond Plate - B Size Medium RAM-B-103-238U
Ball size B
Arm length Medium
459 kr
RAM® ATV/Side By Side Ball Base for Rails up to 3.15" - Zinc RAM-B-231Z-2U
Ball size B
489 kr

Astro 320

Astro 430

GPSMAP 62

GPSMAP 62s

GPSMAP 62sc

GPSMAP 62st

GPSMAP 62stc

GPSMAP 64

GPSMAP 64s

GPSMAP 64sc

GPSMAP 64st
