RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base

Part#:RAM-B-149Z-UN11U UPC:793442946769 Patented

RAM-B-149Z-UN11U:RAM-B-149Z-UN11U_2:RAM X-Grip Large Tablet Mount with Handlebar U-Bolt Base

RAM-B-149Z-UN11U:RAM-B-149Z-UN11U_3:RAM X-Grip Large Tablet Mount with Handlebar U-Bolt Base

RAM-B-149Z-UN11U:RAM-B-149Z-UN11U_4:RAM X-Grip Large Tablet Mount with Handlebar U-Bolt Base

RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base

Part#:RAM-B-149Z-UN11U UPC:793442946769 Patented

B SIZE

MED ARM

2 809 kr

Incl. VAT

Options

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet fits most 12" - 13" tablets
Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Related RAM® Components

RAM® Pin-Lock™ Security Knob for B Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

RAM® Add-A-Ball™ Accessory Ball for B S...

RAM® X-Grip® Rubber Cap 4-Pack Replacement

RAM® X-Grip® Red Rubber Cap 4-Pack

Information

Information
Compatibility
Complete Your Solution
FAQ
Resources

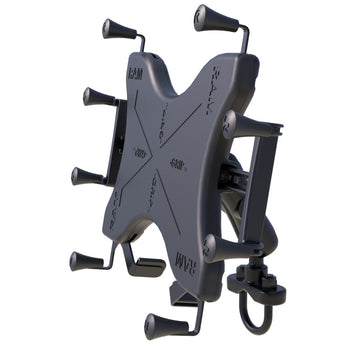

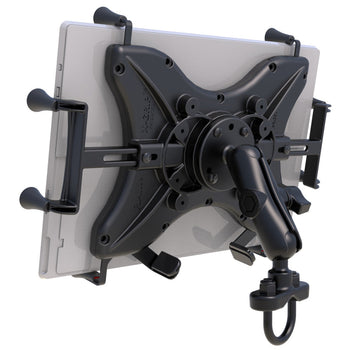

The RAM-B-149Z-UN11U consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 12"-13" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12"-13" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.

RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base

hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer

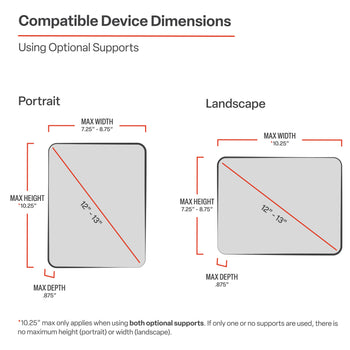

holder dimensions	Max Height: 10.25" (using optional supports) Width Range: 7.25" - 8.75" Max Depth: .875"
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.798 kg
Additional Information	This holder is compatible with the iPad Pro 12.9 without case only.
