RAM® Tab-Tite™ with RAM® Twist-Lock™ Dual Suction for Tablets with Cases
Part#:RAM-B-189-PIV1-TAB20-ALA1-KRU UPC:7.93442E+11 Patented
Ball Icon B SIZE
Arm Icon MED ARM
2 769 kr
Incl. VAT
  • Spring-loaded holder secures 9" tablets with heavy-duty cases interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm with retention knob ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty*
Related RAM® Components
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® 1/2" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders
RAM® 1/2" Risers for RAM® Tab-Tite™ and...
RAM® 1" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders
RAM® 1" Risers for RAM® Tab-Tite™ and R...

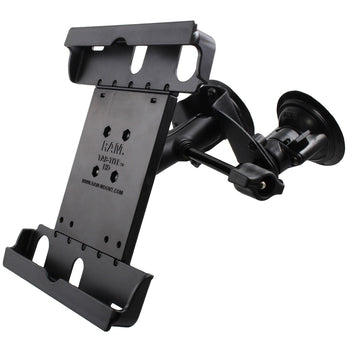

The RAM-B-189-PIV1-TAB20-ALA1_KRU consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal Tab-Tite™ cradle for 10" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included

Assembly Hardware
holder dimensions

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
suction size

(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Powder coated steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

1.034 kg
Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Innehåller

RAM® Tab-Tite™ Holder for 9"-10.5" Tablets with Heavy Duty Cases RAM-HOL-TAB20U
669 kr
RAM® Round Plate with Ball - B Size RAM-B-202U
Ball Icon B SIZE
Arm Icon ARM
189 kr
RAM® Double Socket Arm with Retention Knob - B Size Medium RAM-B-201-ALA1-KRU
Ball Icon B SIZE
Arm Icon MED ARM
559 kr
RAM® Twist-Lock™ Dual Pivot Suction Cup Base with Ball RAM-B-189B-PIV1U
Ball Icon B SIZE
Arm Icon ARM
1 219 kr

iPad (5th-11th Gen) with Case

iPad 9.7 (2017) with Case

iPad 9.7 (2018) with Case

iPad Air with Case

iPad Air 2 with Case

iPad Pro 10.5 (2nd Generation) with Case

iPad Pro 11 with Case

ZenPad 10 with Case

ZenPad 3S 10 with Case

ZenPad Z10 with Case

MediaPad M2 10.0 with Case

Tab 2 A10-70 with Case

Tab 4 10 with Case

Tab 4 10 Plus with Case

Tab K11 with Case

Tab3 10 Business with Case

Yoga Tab 3 10 with Case

G Pad 10.1 with Case

G Pad II 10.1 with Case

G Pad X 10.1 with Case

G Pad X II 10.1 with Case

Surface Go with Case

Surface Go 2 with Case

Galaxy Tab 10.1 with Case

Galaxy Tab 3 10.1 with Case

Galaxy Tab 8.9 with Case

Galaxy Tab A 9.7 with Case

Galaxy Tab A 10.5 with Case

Galaxy Tab A11 Plus with Case

Galaxy Tab Pro 10.1 with Case

Galaxy Tab S2 9.7 with Case

Galaxy Tab S3 9.7 with Case

Galaxy Tab S4 10.5 with Case

Galaxy Tab S6 with Case

Galaxy Tab S7 with Case

Galaxy Tab S8 with Case

Galaxy Tab S9 with Case

Galaxy Tab S9 FE with Case

Xperia Tablet Z with Case

MatrixPad Z4 10"

RAM® Roto-View™ Adapter Plate RAM-HOL-ROTO1U
449 kr
RAM® 1/2" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders RAM-HOL-TAB-RISER1U
159 kr
RAM® 1" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders RAM-HOL-TAB-RISER2U
229 kr
