RAM® Tab-Tite™ with Twist-Lock™ Dual Suction for iPad Gen 1-4
Part#:RAM-B-189-TAB3U UPC:793442934599 Patented
Ball size B
Arm length Medium
1 929 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) without case and more interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm with retention knob ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty*
Related RAM® Products
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® 1/2" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders
RAM® 1/2" Risers for RAM® Tab-Tite™ and...
RAM® 1" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders
RAM® 1" Risers for RAM® Tab-Tite™ and R...

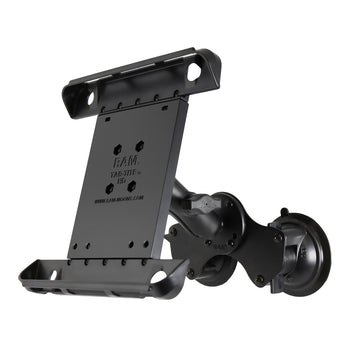

The RAM-B-189-TAB3U consists of a double 3.3" twist lock suction cup base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included

Assembly Hardware
holder dimensions

Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"
suction size

(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Powder coated steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.82 kg
Additional information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
