RAM® ATV/UTV Rail Mount with Garmin VIRB™ Camera Adapter
Part#:RAM-B-231Z-2-GA63U UPC:793442943782 Patented
Ball size B
Arm length Medium
939 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for B S...

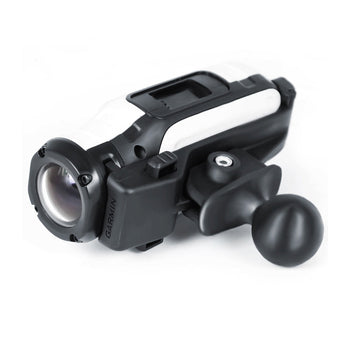

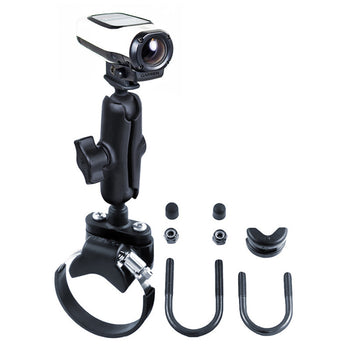

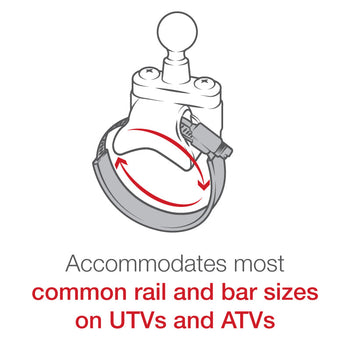

The RAM-B-231Z-2-GA63U consists of a steel strap base, u-bolt bases, double socket arm and Garmin VIRB™ camera adapter. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on Side By Side's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV's using the included hardware. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
hardware included

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nyloc Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.304 kg
