RAM® Small Gas Tank Mount with Diamond Plate
Part#:RAM-B-410-A-238U UPC:793442952708
Ball size B
Arm length Short
1 159 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. Included is the B size 1" ball on a diamond plate to mount RAM GPS cradles or any other mount that uses the diamond connection.
hardware included

Assembly Hardware
(3) M6-1.0 x 25mm Socket Head Cap Screw
(3) M5-.8 x 35mm Socket Head Cap Screw
(4) M5-.8 x 45mm Socket Head Cap Screw
(3) M5-.8 x 25mm Socket Head Cap Screw
(3) M5-.8 x 20mm Socket Head Cap Screw
(3) M5-.8 x 16mm Socket Head Cap Screw
(4) M5 Stainless Steel Washers
(3) M6 Stainless Steel Washers
socket to socket length

1.75"
hole pattern

2-Hole AMPS: 1.912"

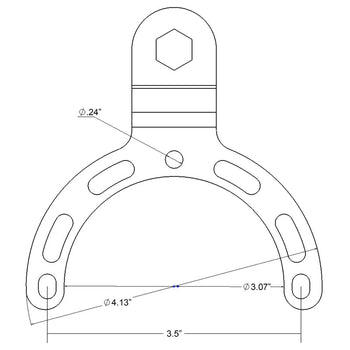

See Drawing
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.245 kg
Additional information
To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 3.5".
