RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium
Part#:RAM-D-111-KNOB9HU UPC:793442949661
Arm Length
Short Arm Medium Arm
Ball size D
3 749 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Hi-Torq™ Wrench for D Size Socket Arms
RAM® Hi-Torq™ Wrench for D Size Socket ...
RAM® Pin-Lock™ Security Nut for D & E Size Socket Arms
RAM® Pin-Lock™ Security Nut for D & E S...
RAM® Cable Manager for Large Electronic Mounts
RAM® Cable Manager for Large Electronic...
RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base
RAM® Tough-Mag™ 48MM 4-Point Magnetic M...
RAM® 4" Offset Vehicle Base Riser
RAM® 4" Offset Vehicle Base Riser
RAM® 7" Offset Vehicle Base Riser
RAM® 7" Offset Vehicle Base Riser

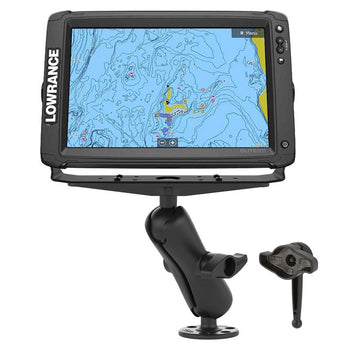

The RAM-D-111-KNOB9HU consists of a 3.68" diameter round base, STANDARD length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Included with this mount is the RAM Hi-Torq™ Wrench designed to be used with the knob found on "D" size ball arms and mounts. The wrench matches the shape of the knob and lets you give the arm an extra tight grip. This wrench was originally made for the military when using the RAM mounts in cold weather, and the knob could not be tightened by hand.
hardware included

(4) .312" x .187" Shoulder Washers
product dimensions

Overall Height: 11.5"
socket to socket length

6.88"
hole pattern

See Drawings
plate size

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
ball size

D Size (2.25")
weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

2.291 kg
Additional information
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
